Pop-Out Video Wall Mount for 37" to 70" TVs

Push-In, Pop-Out TV Mount

Depth Adjust · Menu Boards & Video Walls

$94⁹⁹

A push-in, pop-out TV wall mount for 37 to 70-inch flat screen TVs, built for menu boards and video walls, rated up to 154 lb with VESA 200×200 to 600×400 mm.

Will it fit your TV? Save your TV and we’ll confirm fit.

Free Shipping to Contiguous US | Lifetime Warranty | 60-day Risk Free Returns

Features

Fits 37 to 70 inch flat screen TVs

Weight rated up to 154 lb

±3° leveling after installation - straighten the screen without taking it down

Extends 3.1 to 8.7 in from the wall for flexible positioning

VESA 200×200 to 600×400 mm - fits most flat panel TV brands

Overview

The Pop-Out Video Wall Mount is a push-in, pop-out TV wall mount for 37 to 70-inch televisions. It sets each screen's distance from the wall, so it suits menu boards, video walls and display walls. Rated for TVs up to 154 lb.

Adjustable depth from 3.1 to 8.7 in from the wall. Post-installation leveling of ±3° lets you straighten the screen after it's hung, without taking it down.

Compatible with VESA mounting patterns from 200×200 to 600×400 mm.

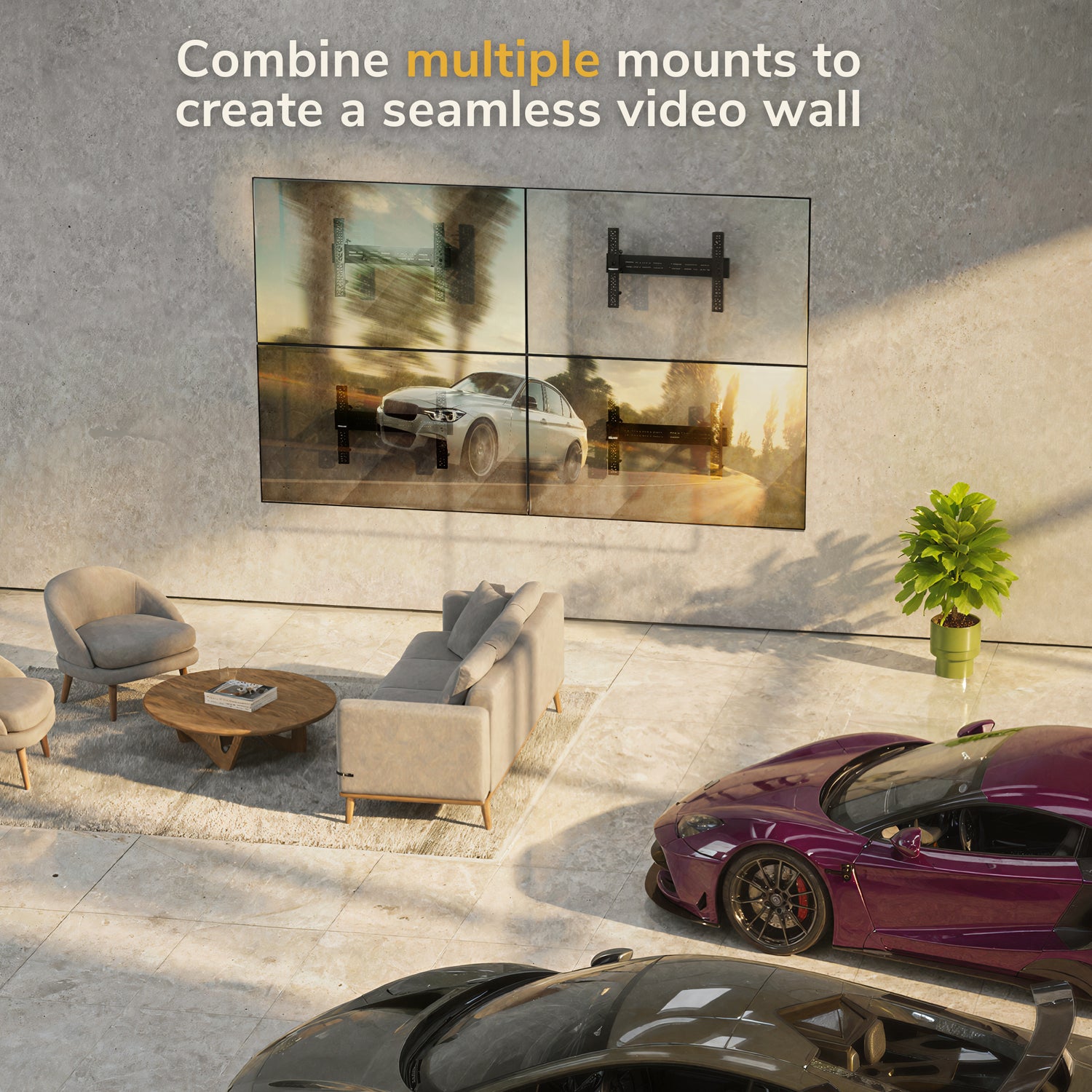

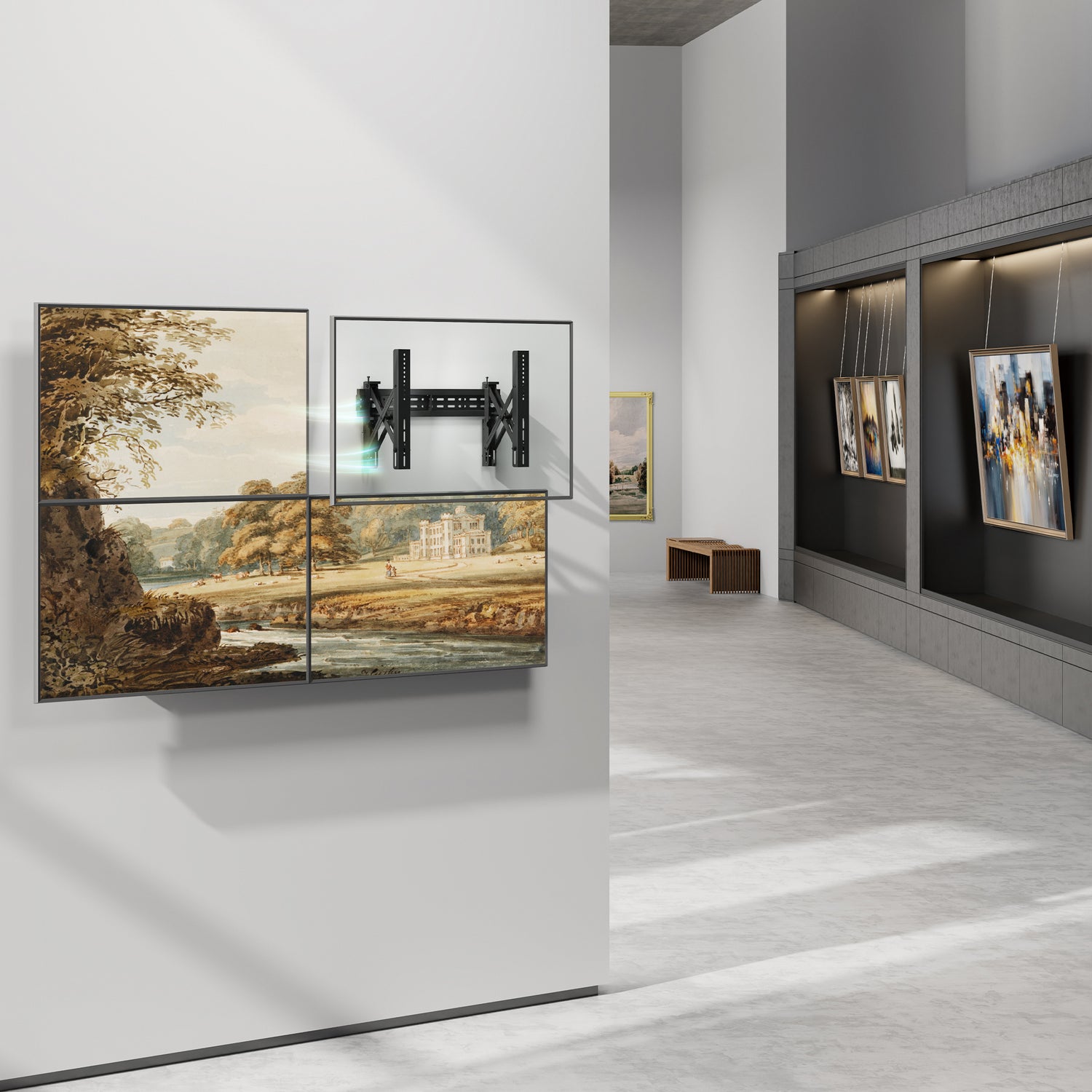

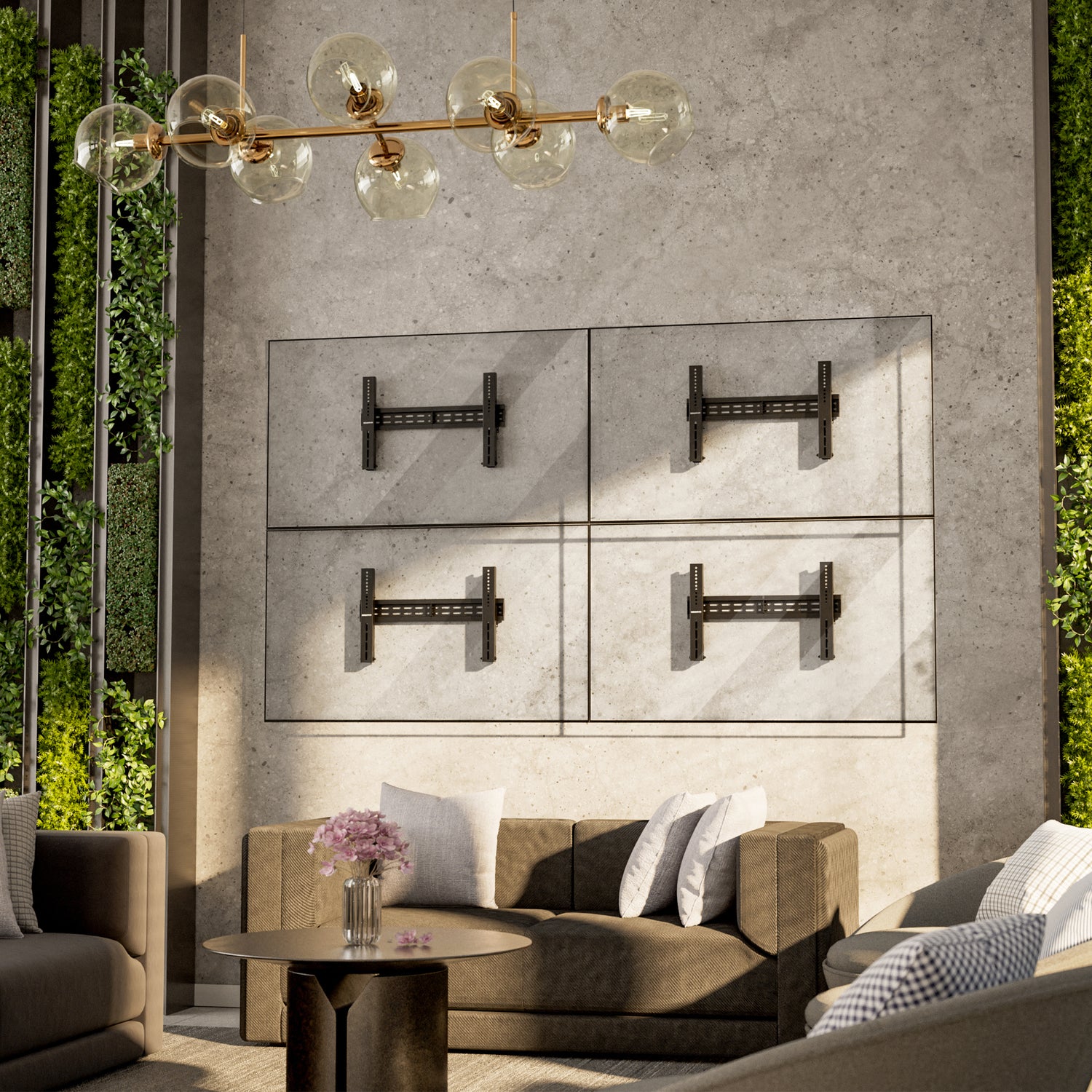

A practical choice for menu boards, video walls and display walls, where each screen's distance from the wall needs to line up with the screens beside it.

Ideally used for

Commercial and corporate video wall installations
Retail displays, digital signage arrays, and control rooms
Conference rooms, lobbies, and public venues requiring secure mounting
Any multi-screen setup where individual screen access and alignment are critical
Environments where displays need periodic servicing without full disassembly

Specifications

SKU: MI-420
Product type: Wall TV Mount
Mount type: Push-in, pop-out
Product weight: 13.1 lb

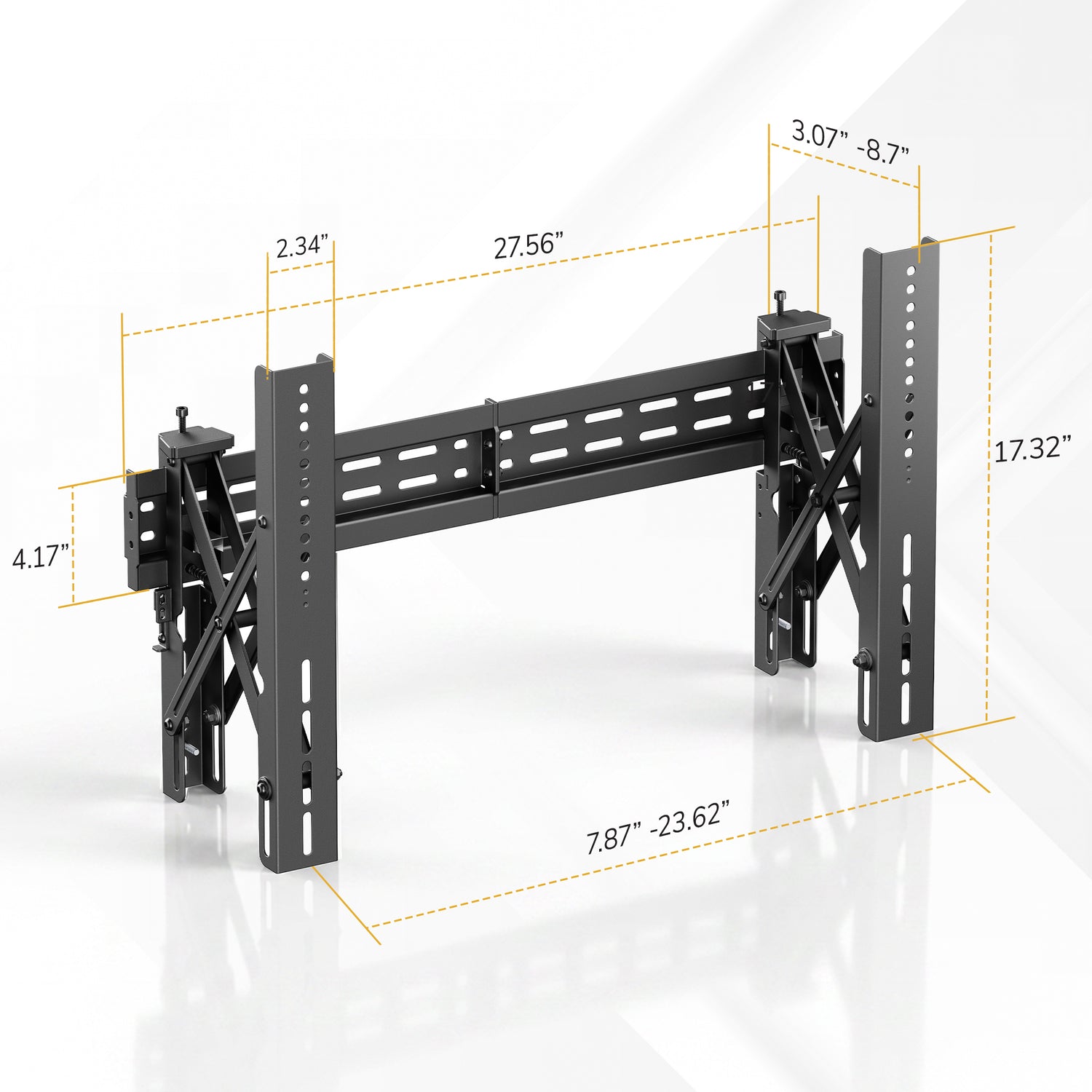

Wall plate dimensions: 27.6×4.2 in

Holds screens

Screen size range: 37 to 70 in
VESA range: 200×200 to 600×400 mm
Weight capacity: 154 lb

Movement

Leveling: ±3° after installation
Extension depth: 3.1 to 8.7 in

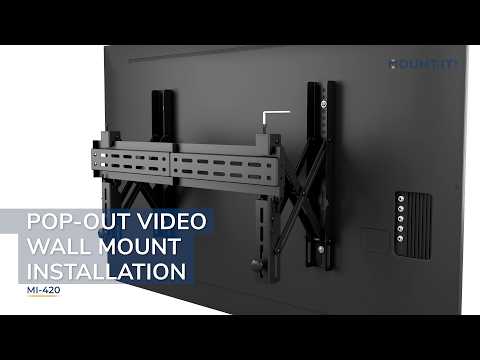

Installation

The Pop-Out Video Wall Mount is designed for quick and frustration free installation.

Easy installation is typically done in about 30 minutes.

Estimated install time: 30 minutes

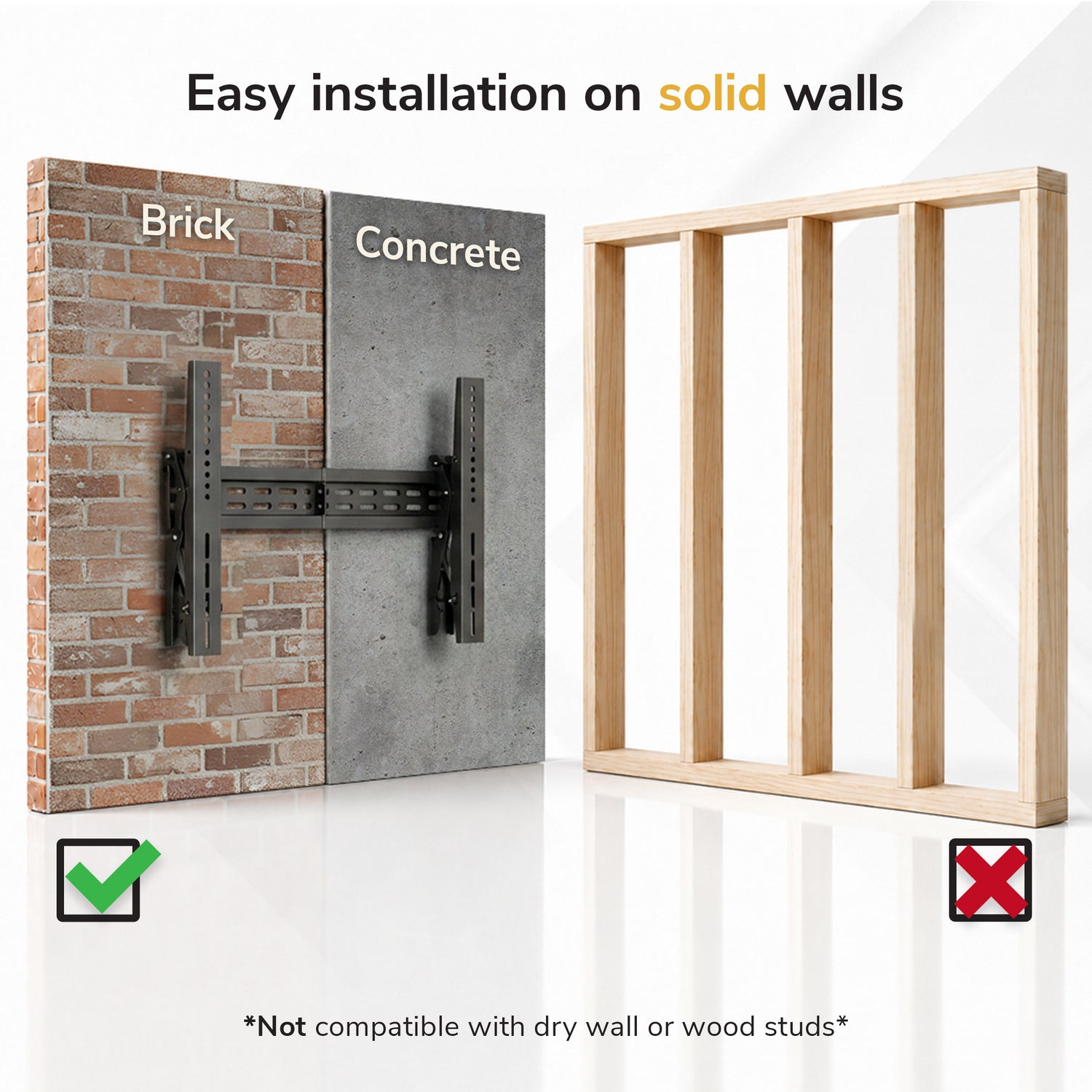

Safely install on these types of surfaces:

Brick veneer
Brick (solid brick)
Concrete block (CMU/cinder block)
Concrete (poured concrete)

Tools you'll typically need:

Screwdrivers or socket wrench
Measuring tape
Level
Drill bits (wood bits for studs or masonry bits for concrete and brick)
Power drill

Manuals & Downloads

Product Manual PDF · Installation guide Spec Sheet PDF · Specifications & dimensions

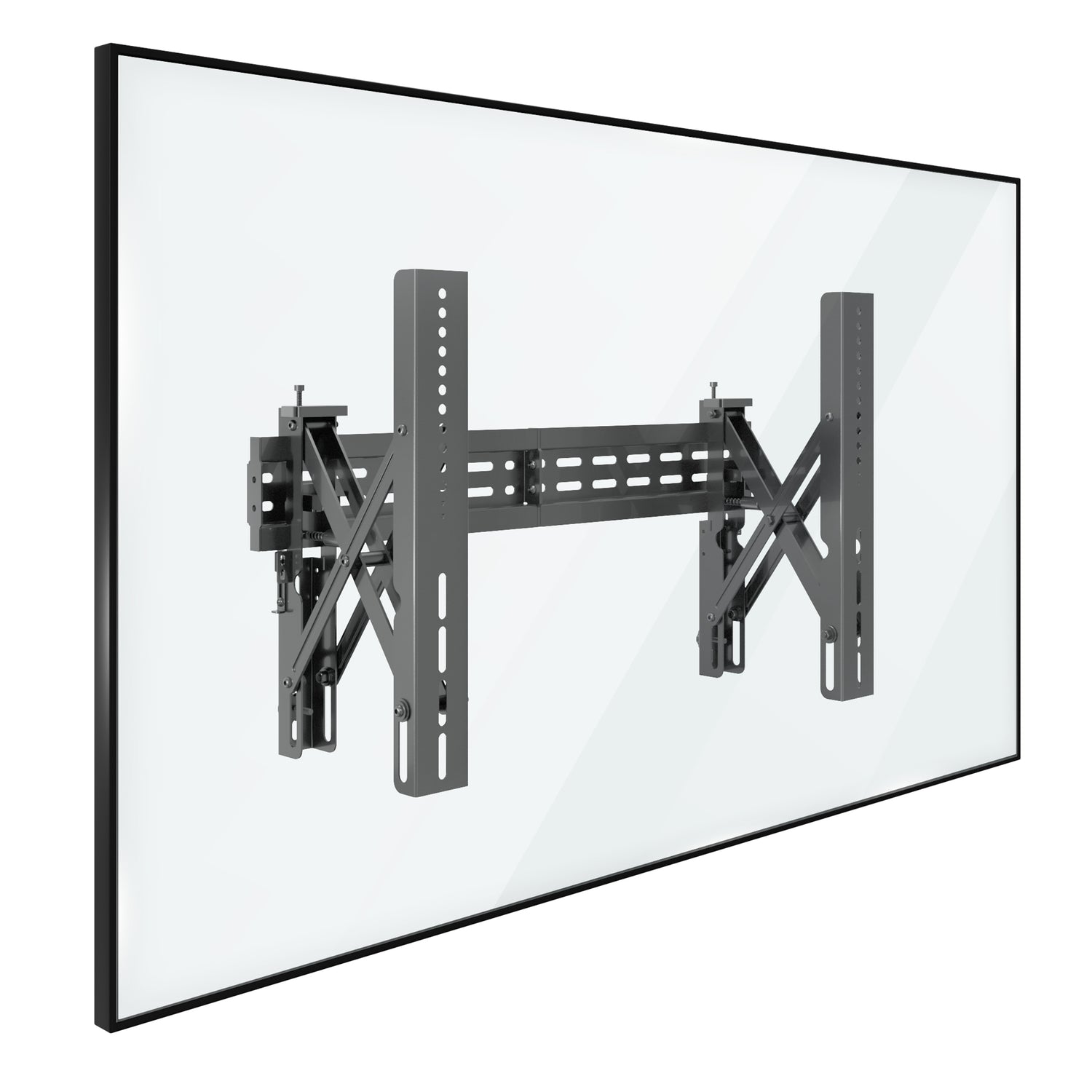

A flat-screen TV is mounted on the Mount-It! Pop-Out Video Wall Mount, shown from an angle that highlights the sturdy metal support structure behind the screen.

Pop-Out Video Wall Mount

$94⁹⁹

Overview

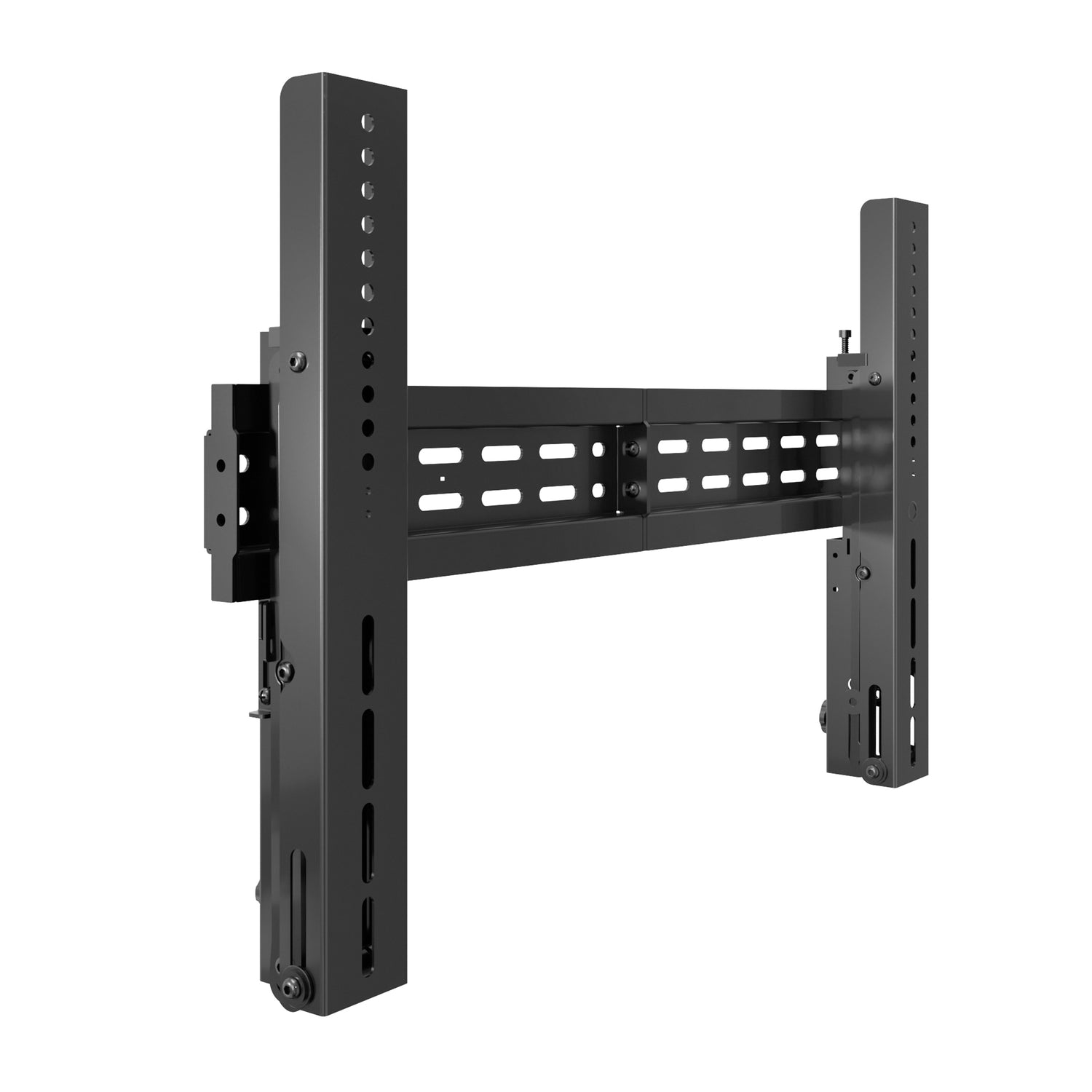

This pop-out video wall mount is engineered for multi-display installations where precision alignment and service access are essential. Its scissor-style mechanism allows each screen to extend independently from the wall, simplifying installation, display calibration, and ongoing maintenance—especially in tiled video wall setups where access to individual panels is required. With a low-profile depth of 3.1 inches, the mount keeps displays positioned close to the wall for a clean, integrated look. When adjustments or servicing are needed, it extends up to 8.7 inches, providing space for cable management and hardware access without disrupting adjacent screens. Designed to support displays from 37" to 70", the mount is compatible with VESA patterns ranging from 200x200 to 600x400 and its heavy-duty steel construction supports up to 154 lbs (70 kg), making it suitable for larger screens. The integrated +/-3° leveling adjustment allows for precise post-installation alignment, helping ensure a uniform appearance across multiple displays. A padlock-ready locking mechanism provides additional security and peace of mind for installations in public spaces. This mount is well-suited for retail digital signage, corporate conference rooms, control centers, hospitality environments, museums, and other professional settings where multiple screens are used to create a cohesive visual display.

Description

Pop-out design for video walls – Scissor-style extension lets each screen pull forward independently for easier alignment, installation, and service without removing surrounding displays

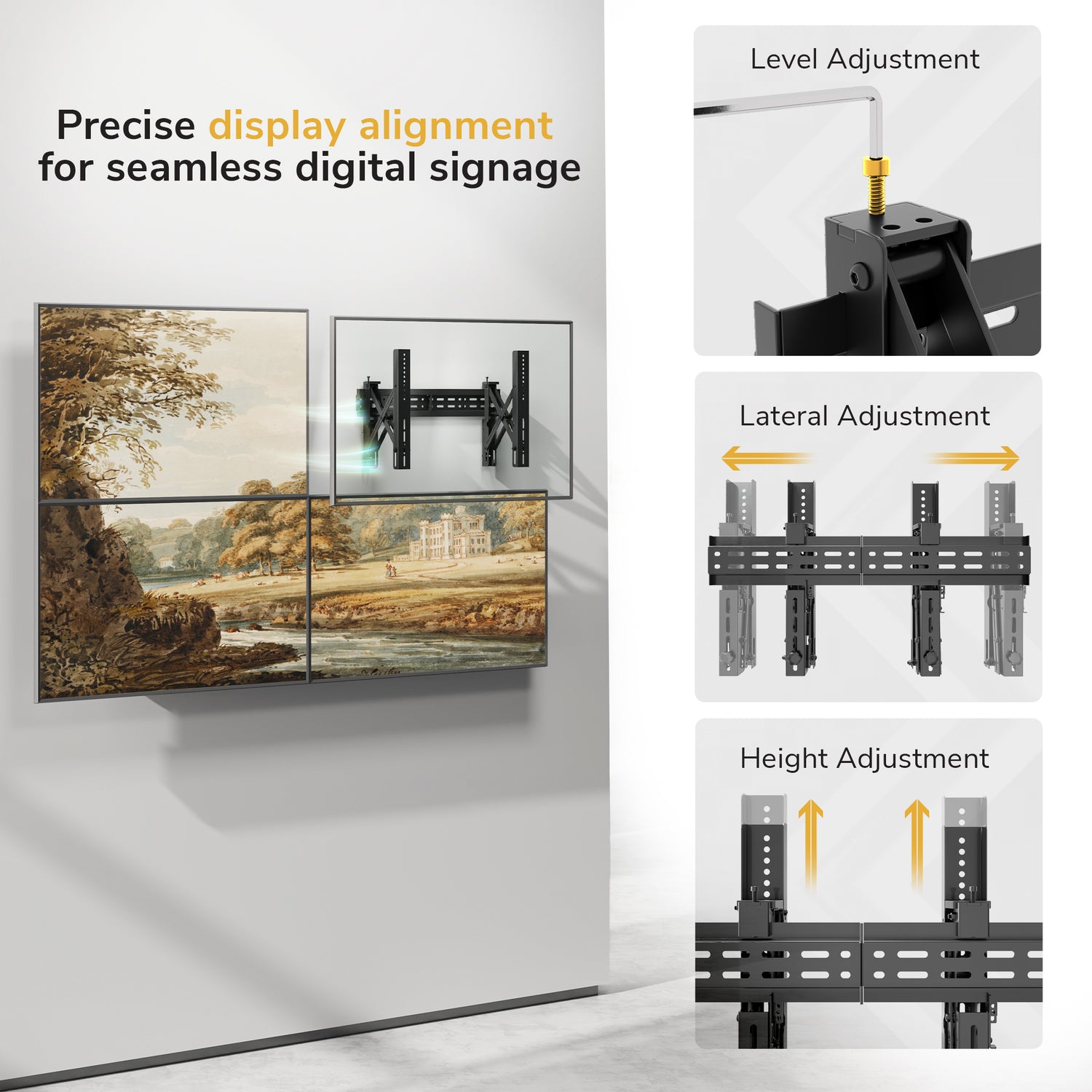

Precise screen alignment – Leveling adjustment of +/-3° helps fine-tune each display for consistent spacing across multi-screen layouts
Wide compatibility with heavy-duty support – Fits small to medium-sized screens up to 154 lbs

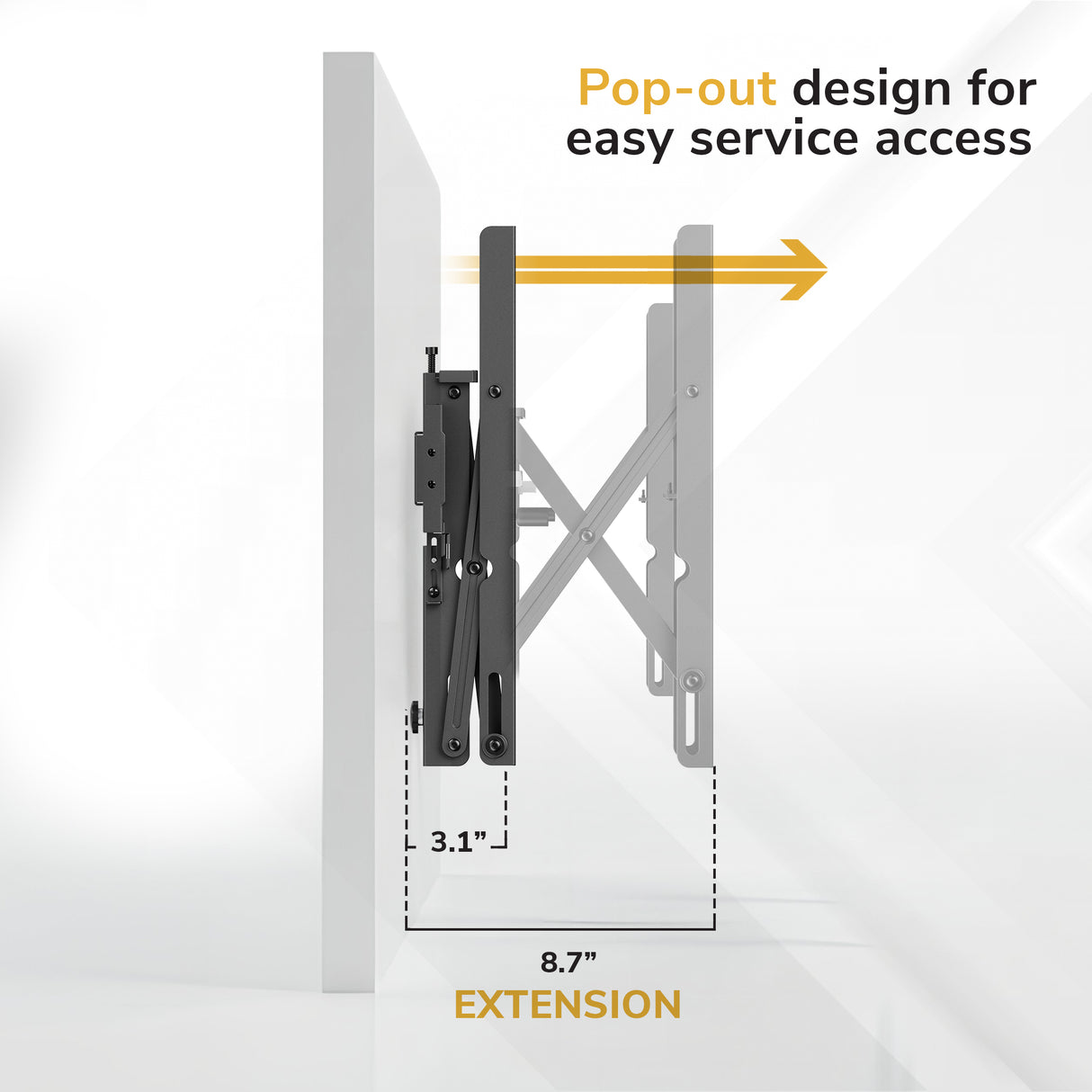

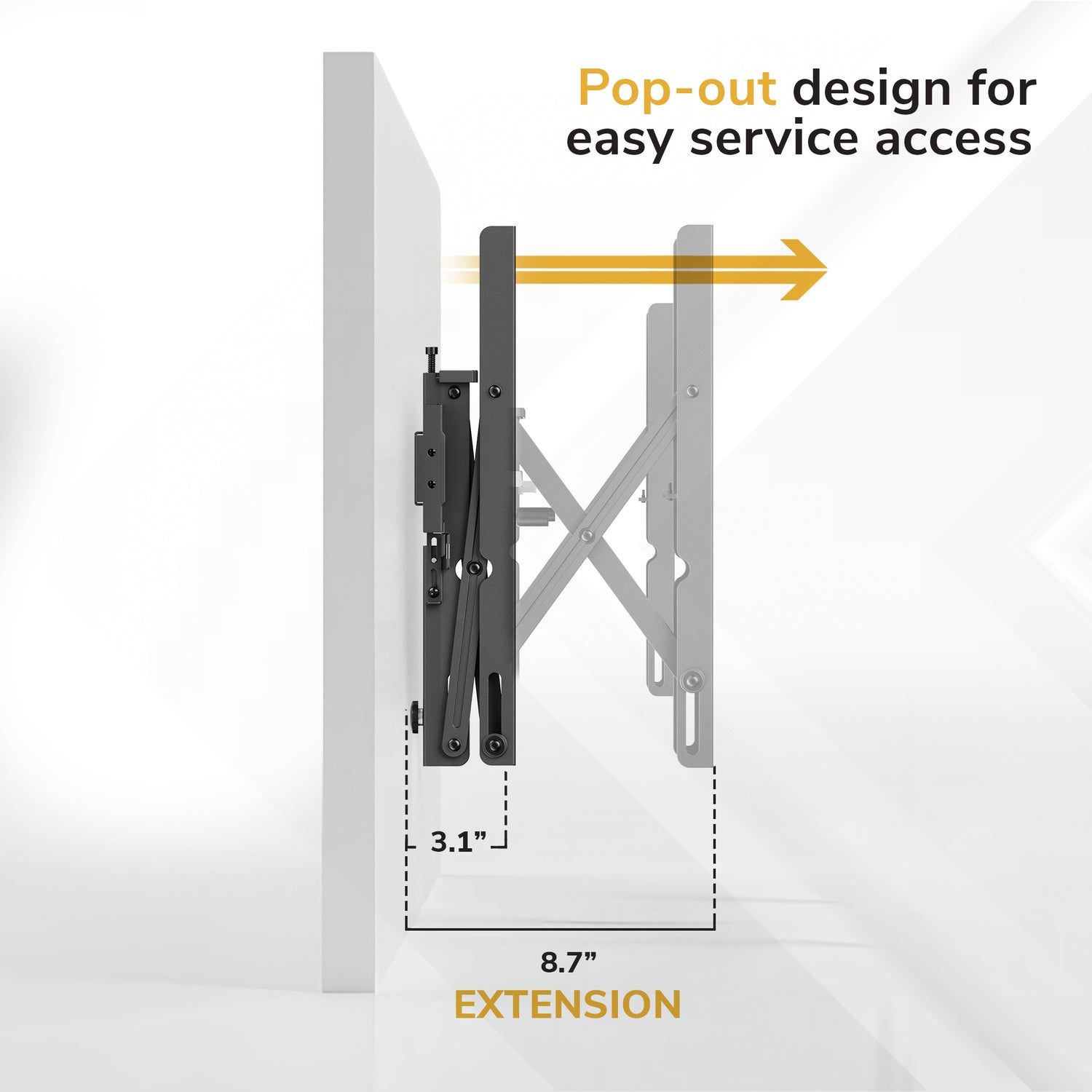

Low-profile with service access – Sits 3.1" from the wall and extends to 8.7" to provide space for cable routing and maintenance

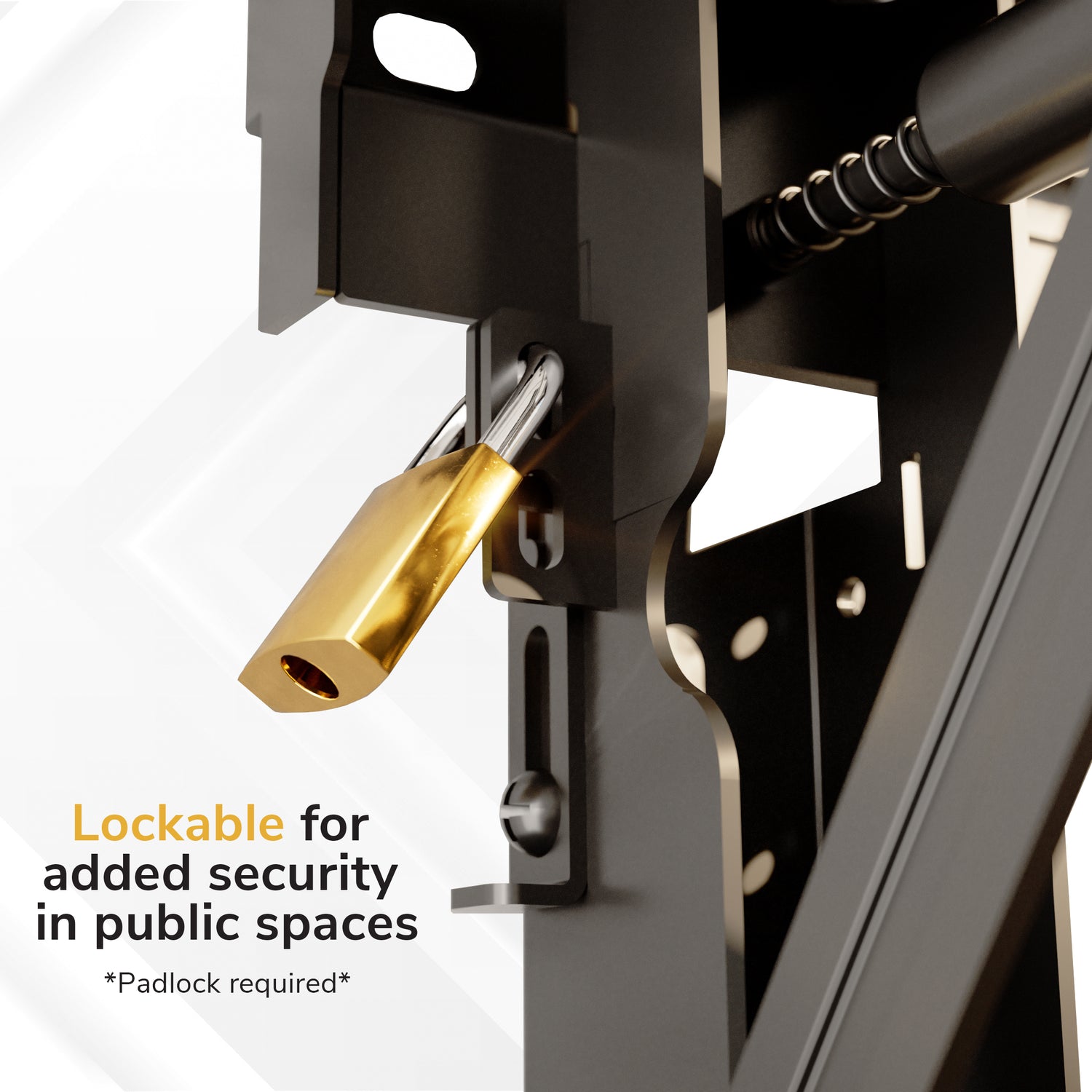

Lockable design for added security – Integrated locking mechanism (padlock required) helps secure displays in public or shared environments

Specifications

TV Sizes: 37" - 70"
Weight Capacity: 154 lbs
Profile: 3.1" - 8.7"

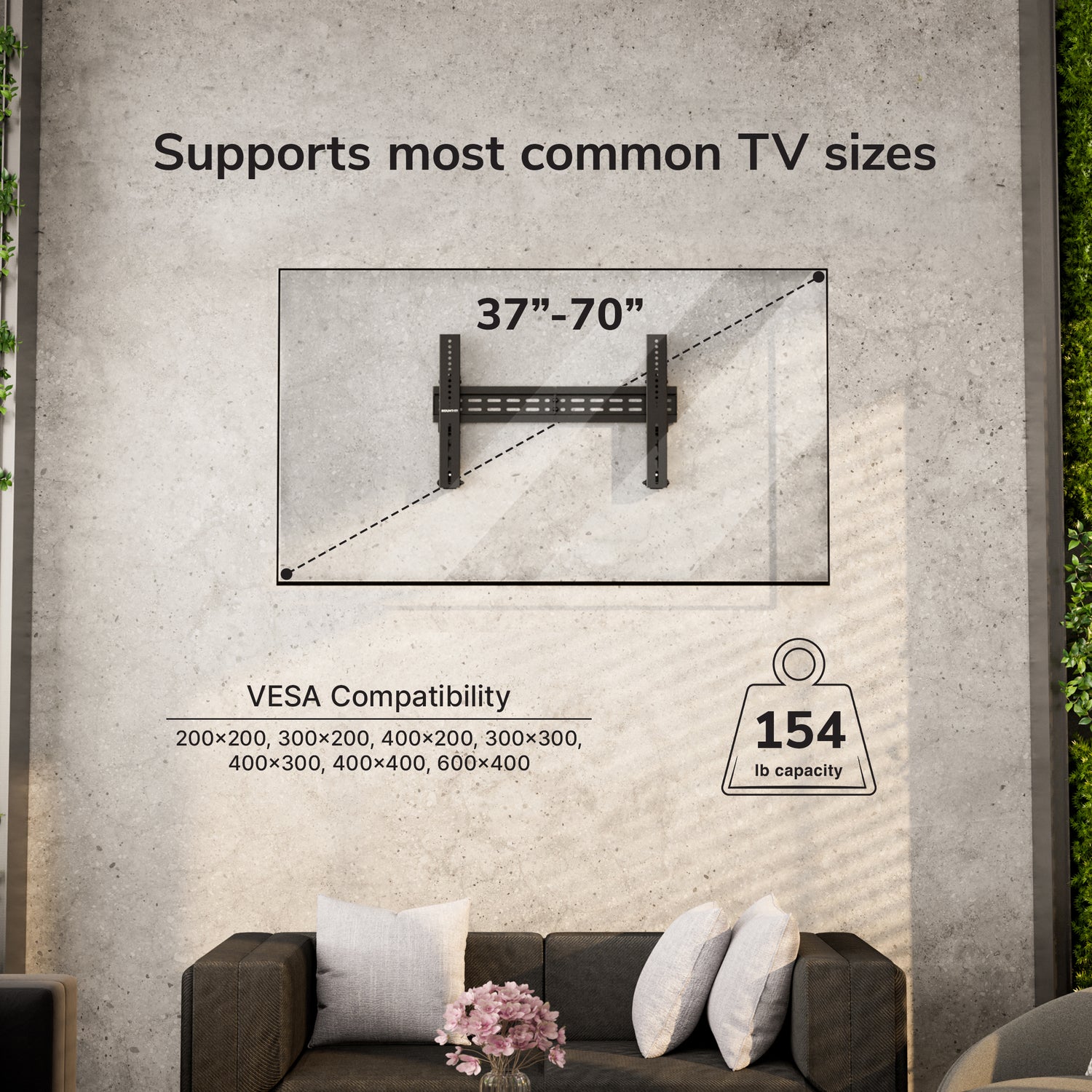

Compatible VESA Patterns: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
Screen Level: +/-3°
Lockable (Padlock required)
Includes: Hardware, mounting template
