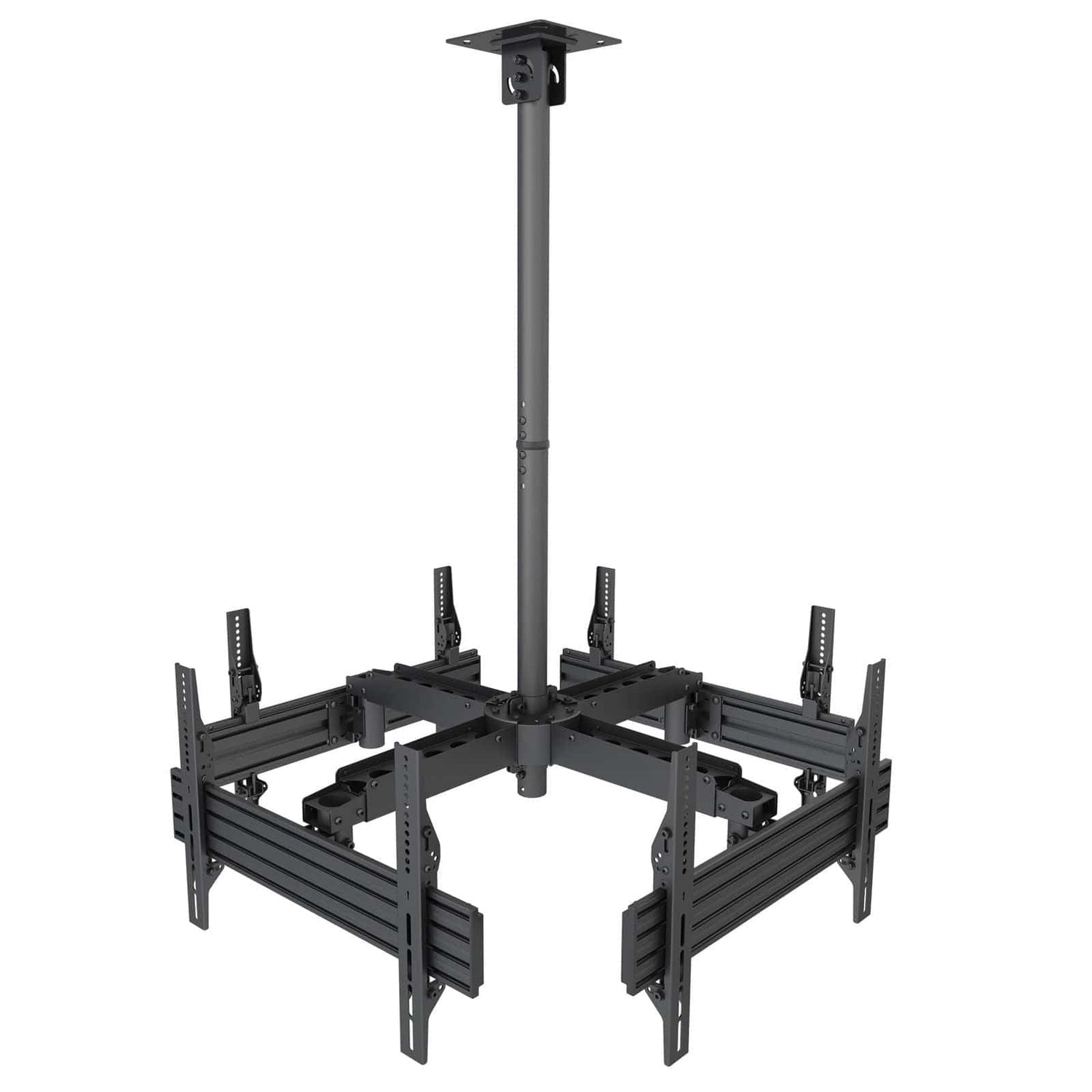

Quad TV Display Ceiling Mount | MI-514

Overview

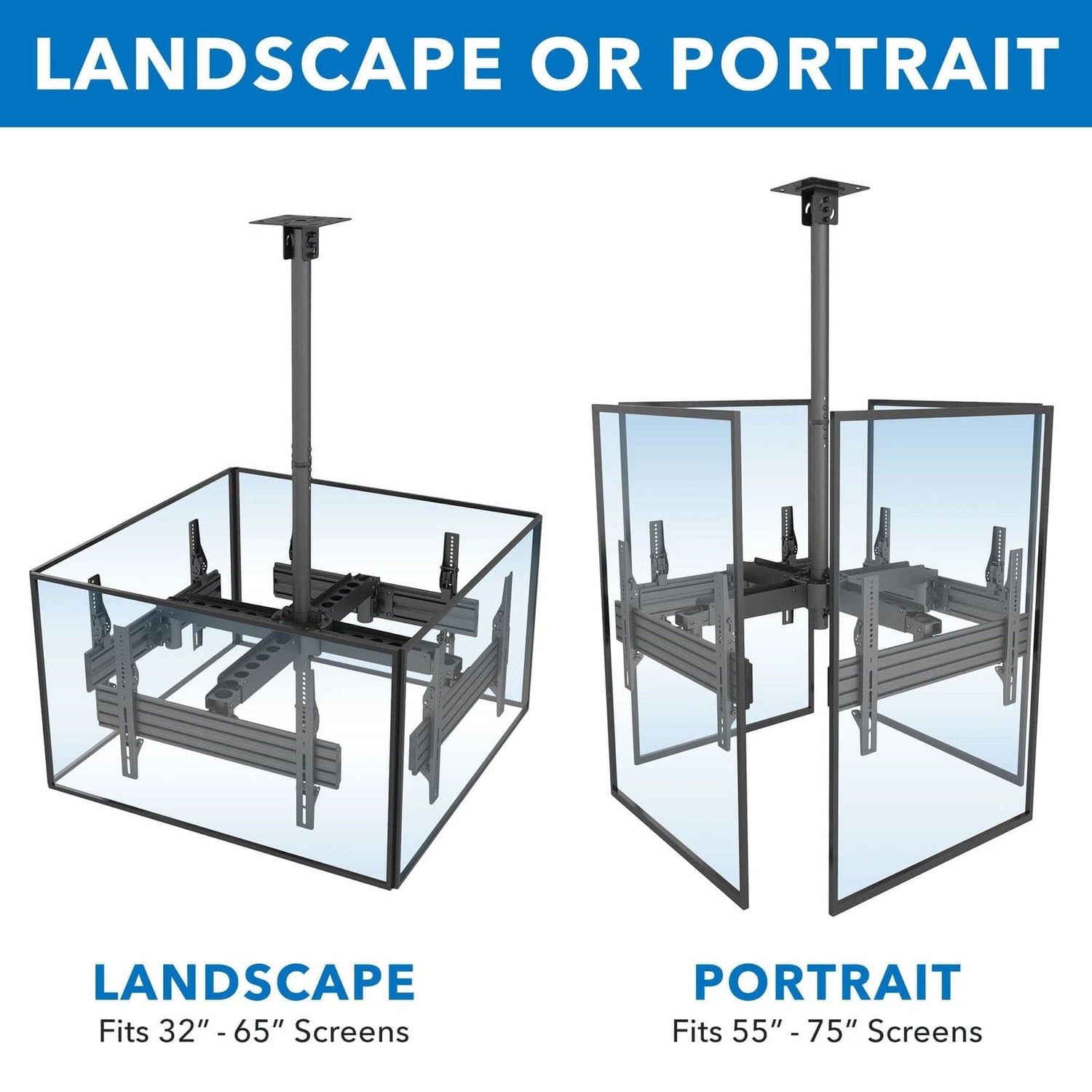

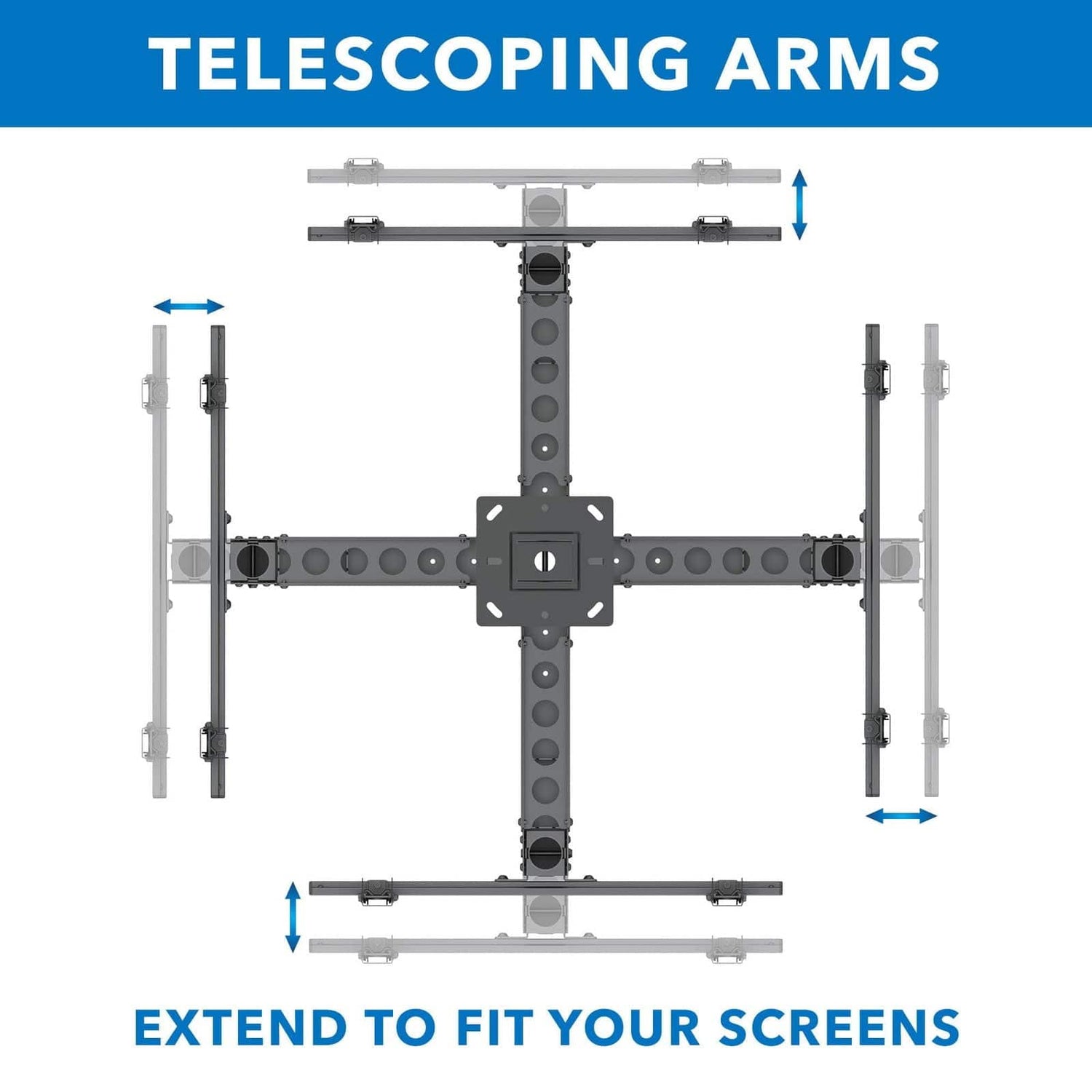

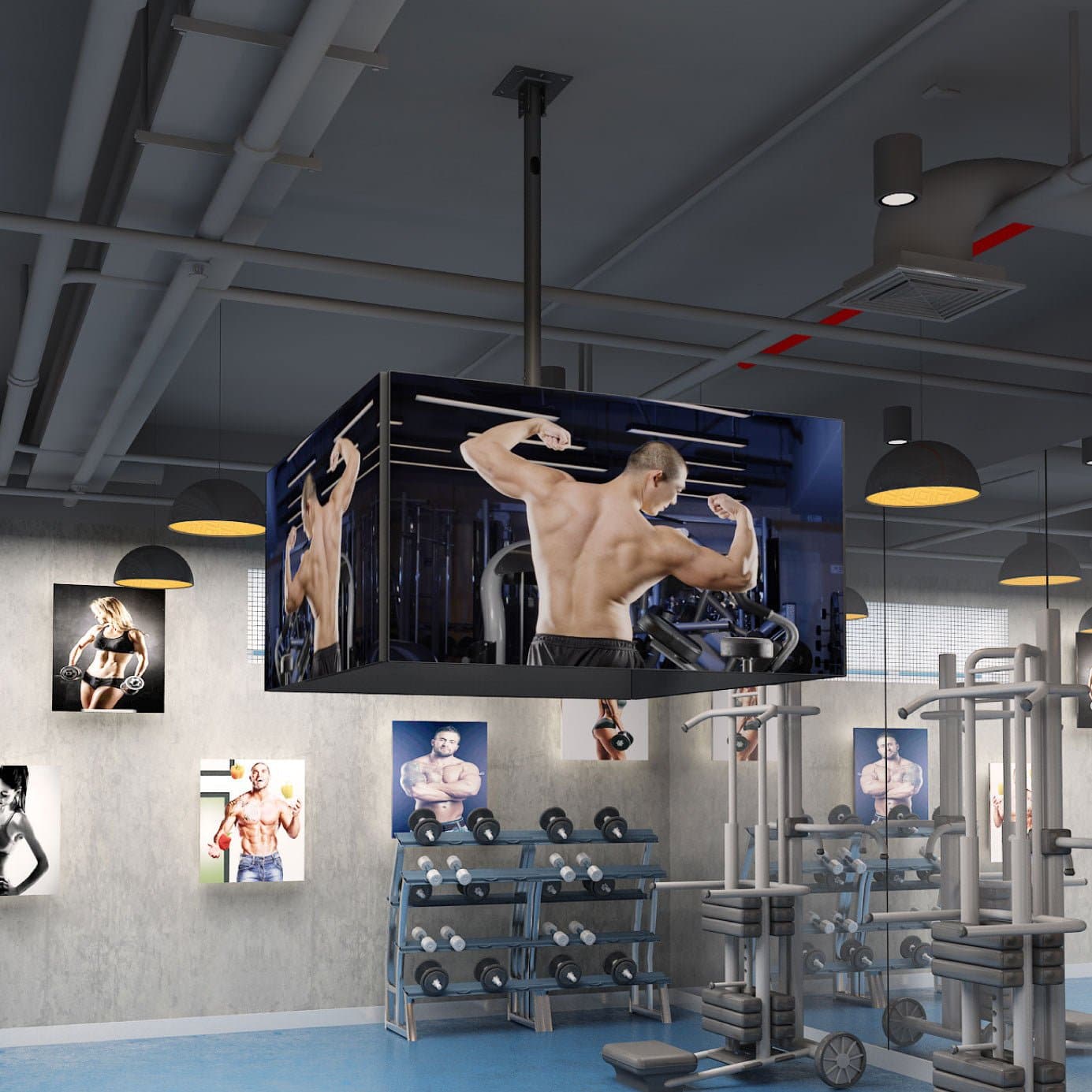

Use this mount to place information or entertainment where it can easily be seen, regardless of wall space. Make content viewable from any point in your facility with this 360° digital signage display mount. Four telescoping mounting arms can hold four screens evenly spaced in a square or rectangular configuration, helping you create the ideal multi-display ceiling mounted solution. Displays can be mounted in landscape or portrait orientation.

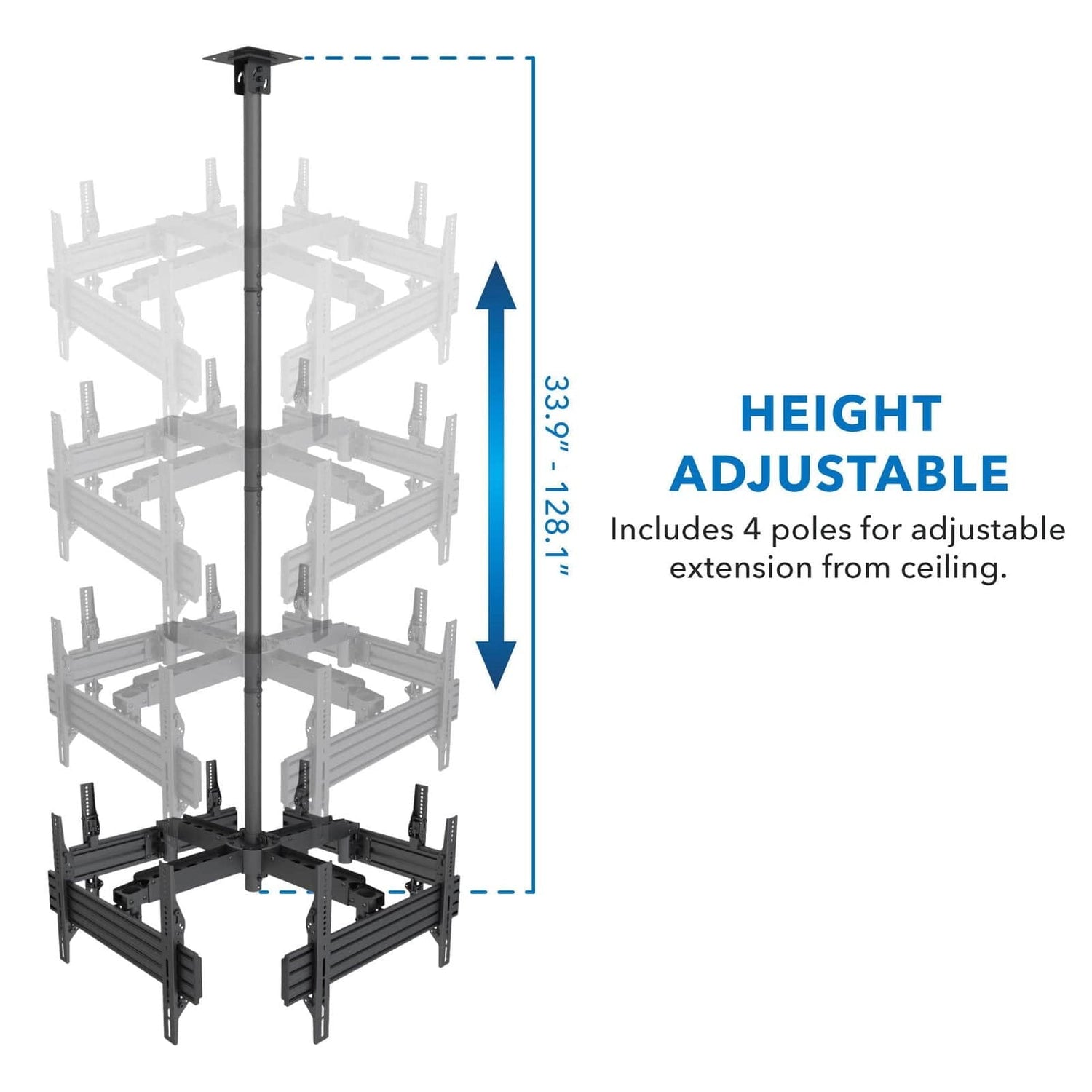

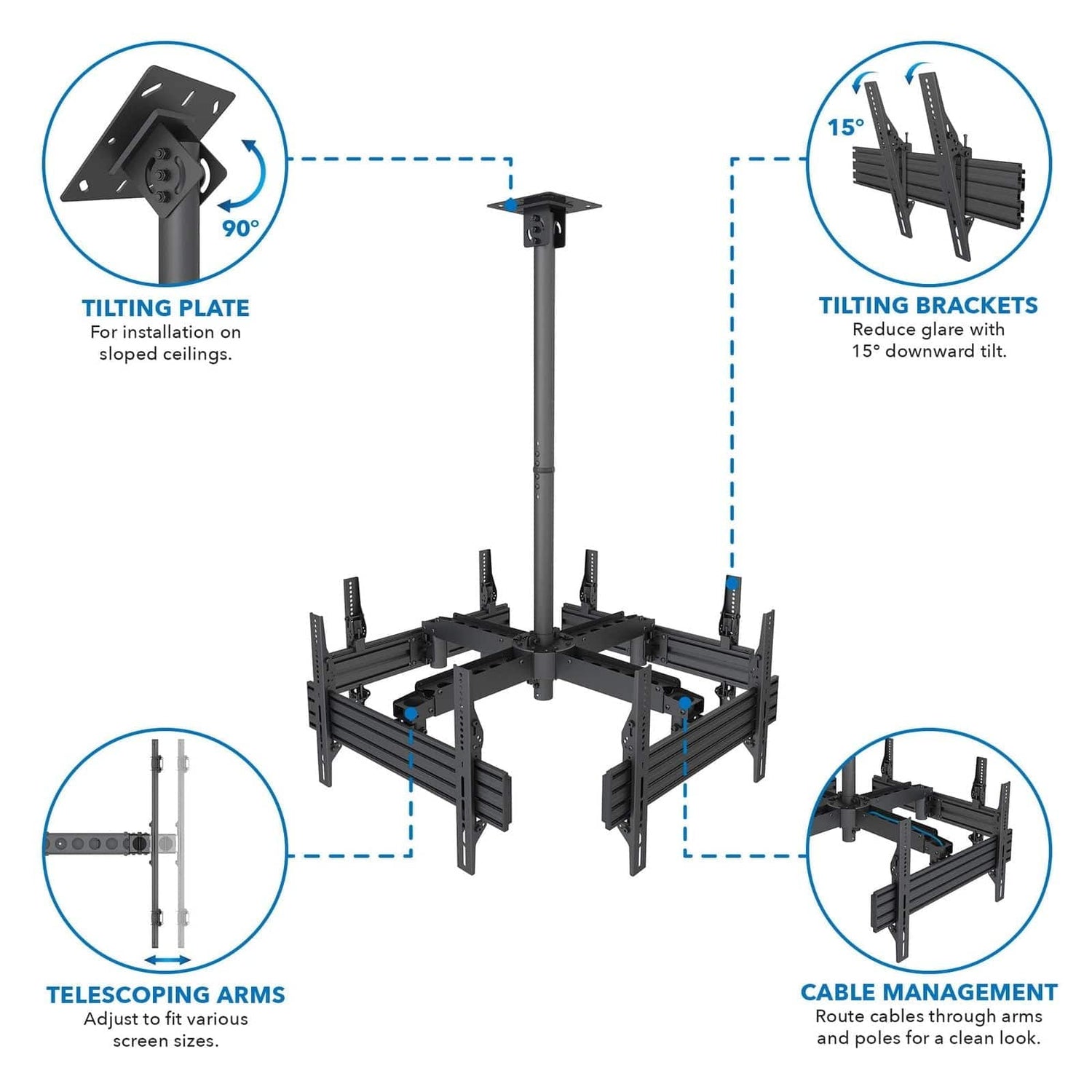

Each arm’s adjustable depth allows the installer to set the spacing between each display to meet your application’s needs. With 360° of swivel, and 15 degrees of tilt, this mount creates the perfect viewing angle for any application. Four modular pole pieces allow height adjustment between 33.9 inches to 128.1 inches from the ceiling.

Specifications

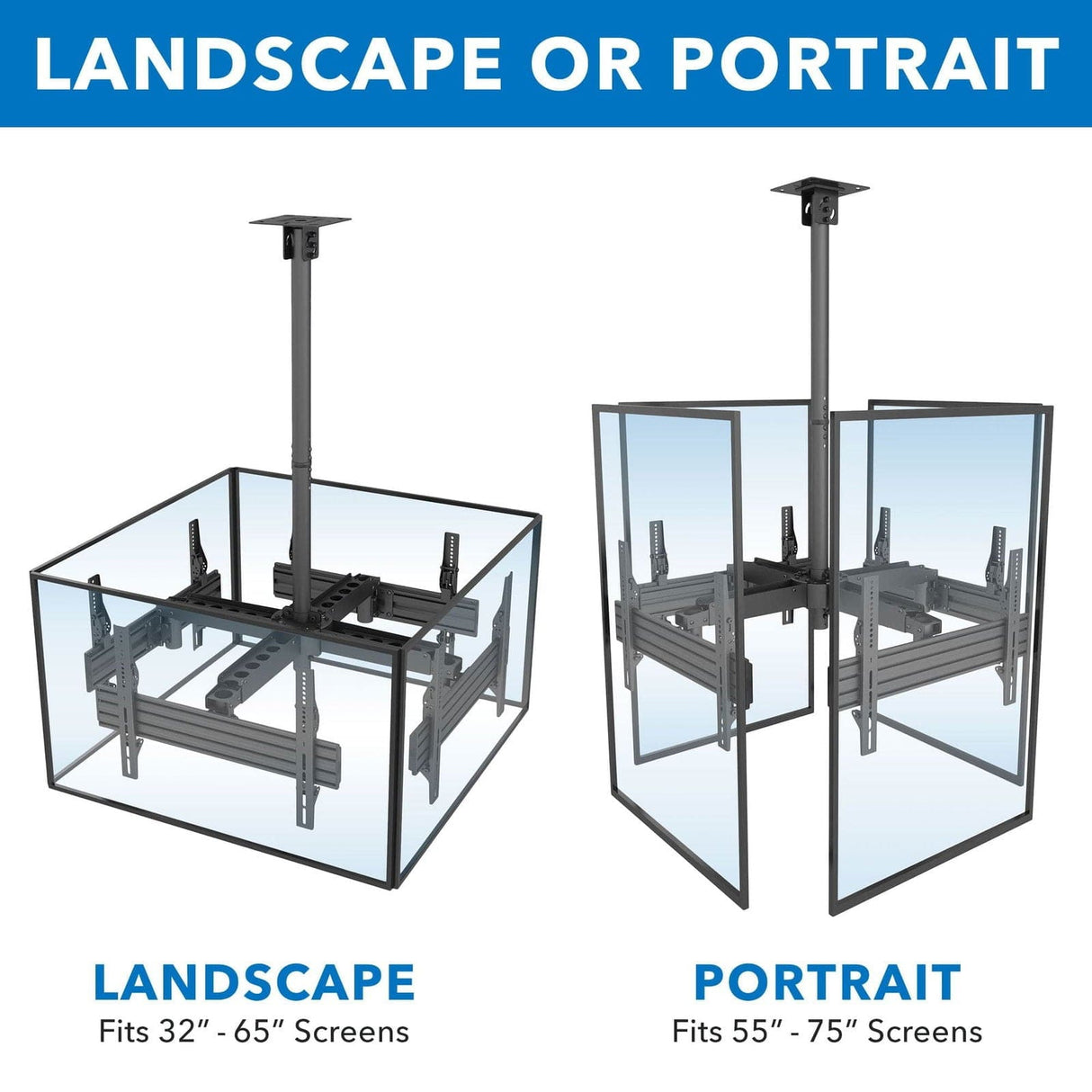

  • Screen Size: 32-65" screens (landscape) and 55-75" screens (portrait)

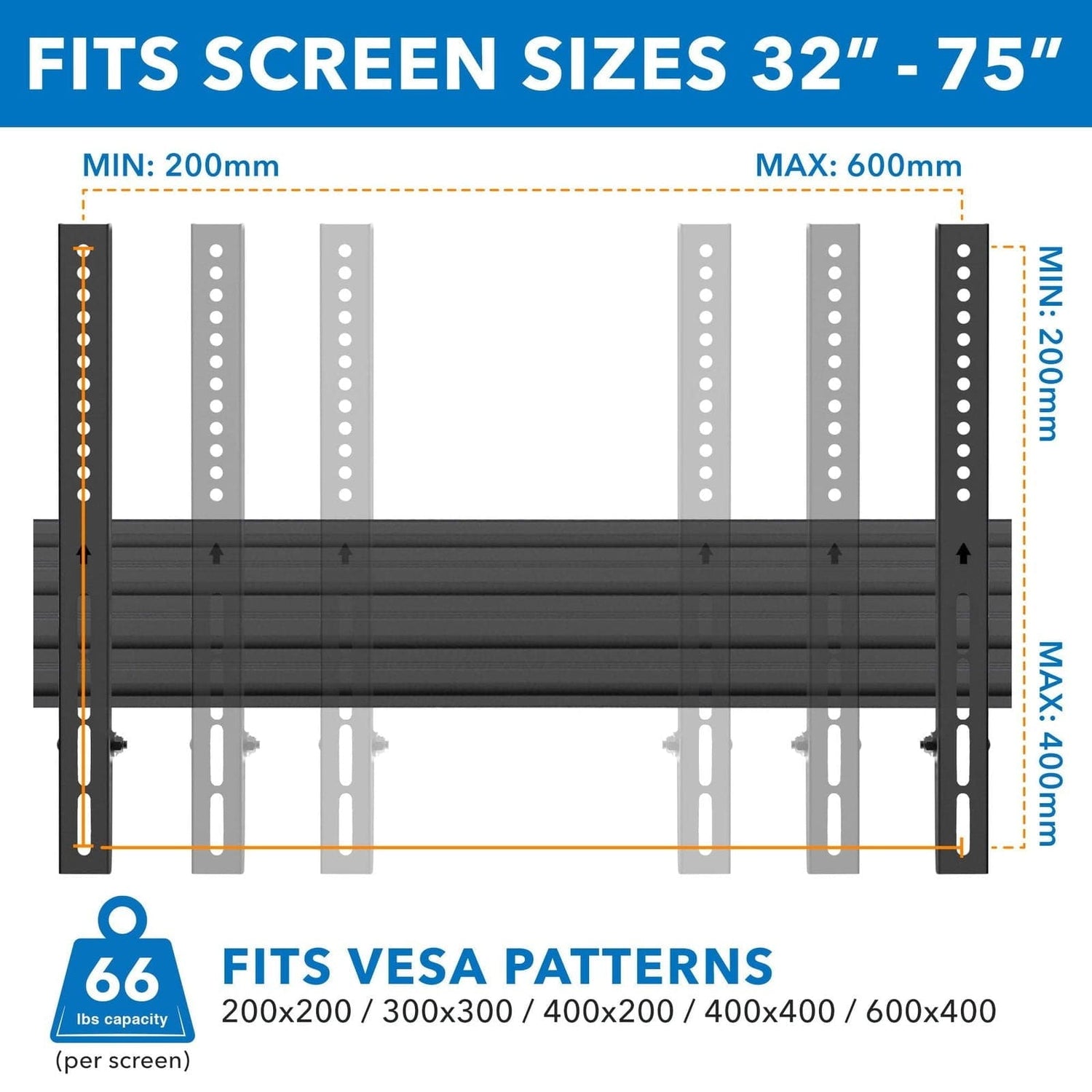

  • VESA Compatible: 200mm x 200mm, 300mm x 300mm, 400mm x 200mm, 400mm x 400mm, and 600mm x 400 mm
  • Max Load Capacity: 66 lbs (per screen)
  • Tilt: -15°

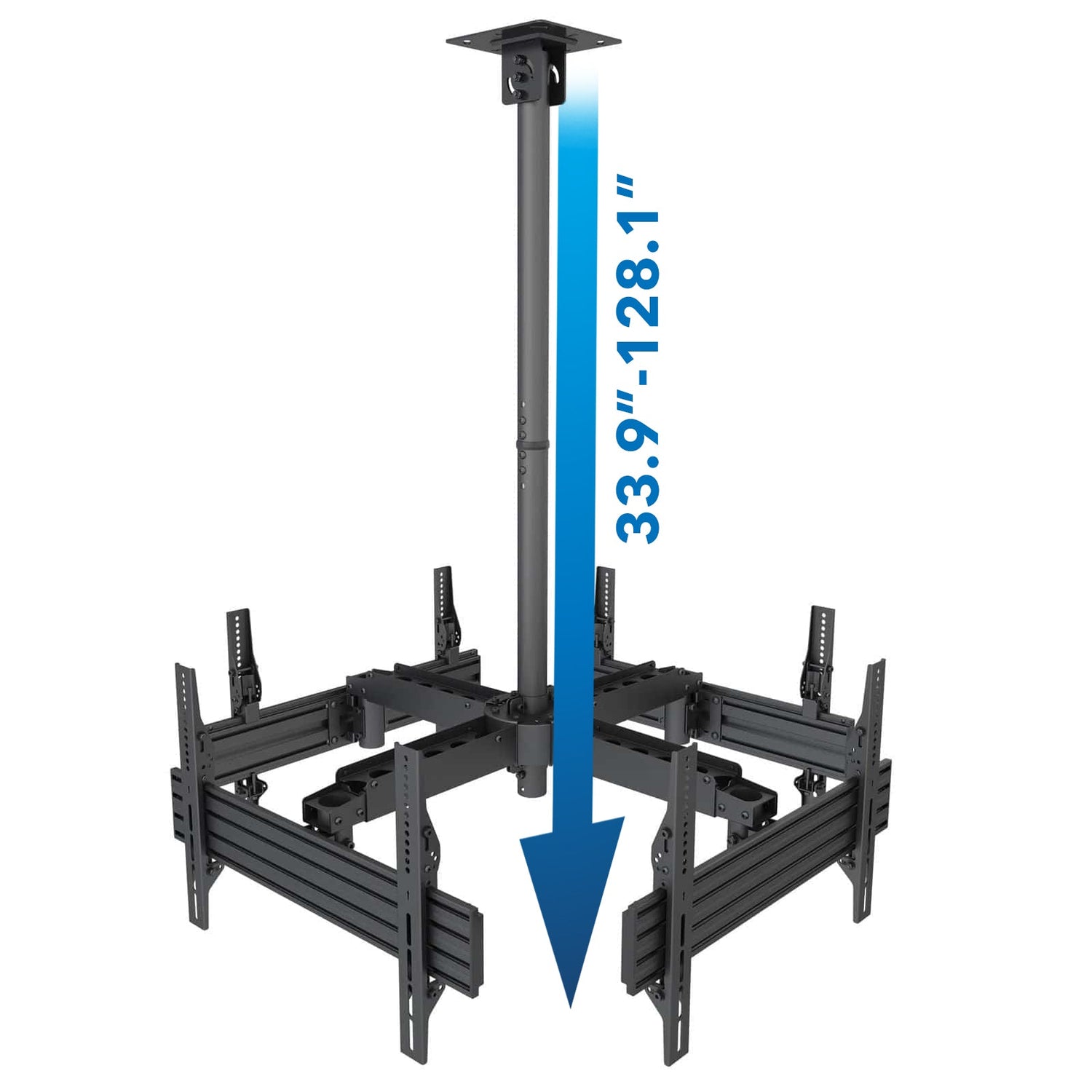

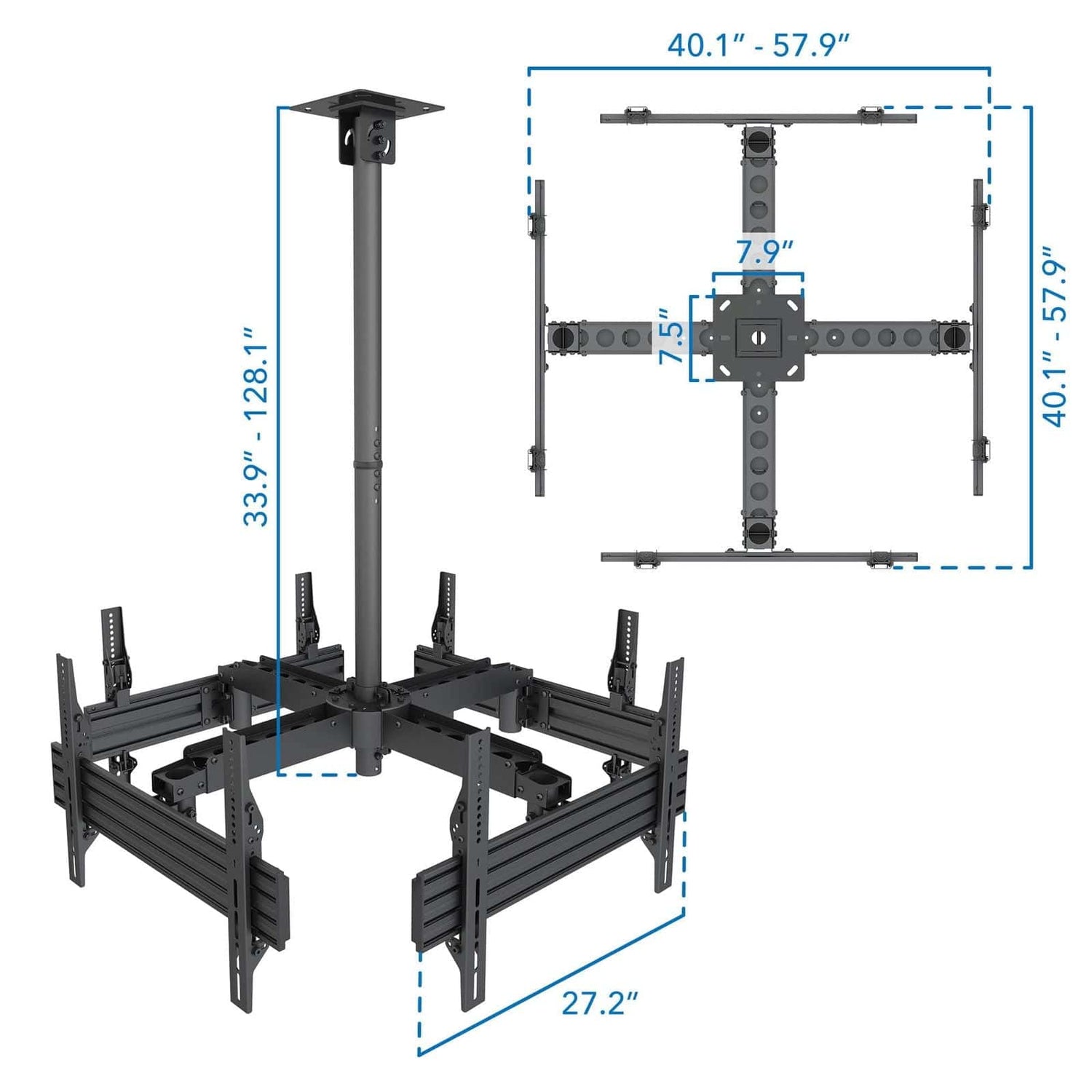

  • Height Adjustment: 33.9" - 128.1"
  • Cable Management: Yes
