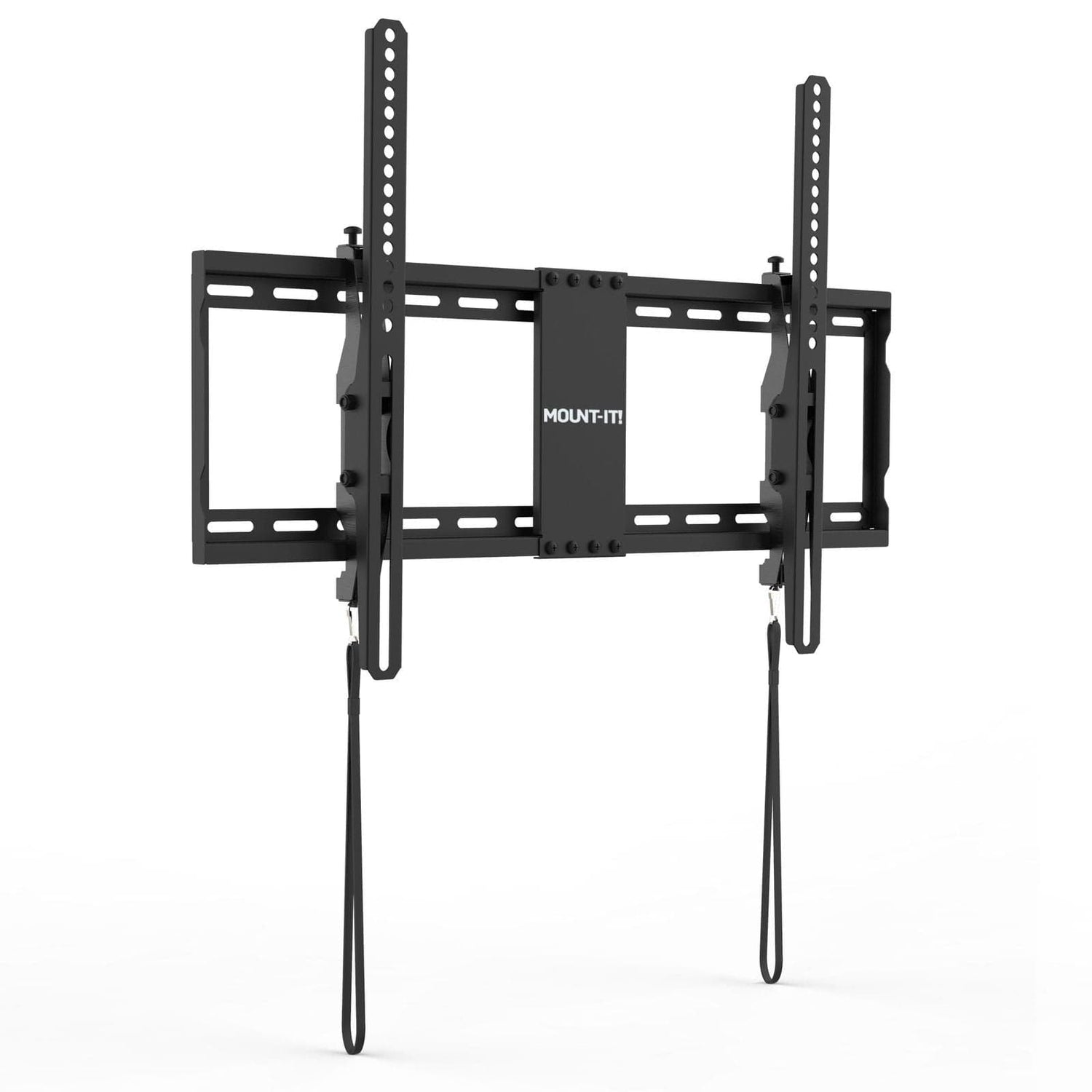

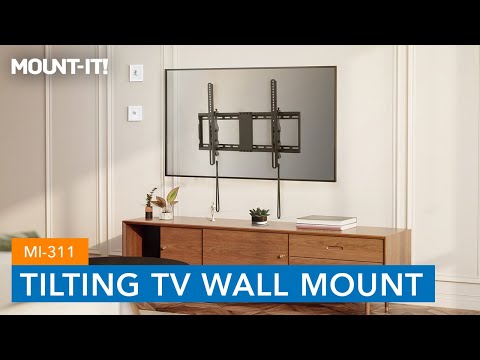

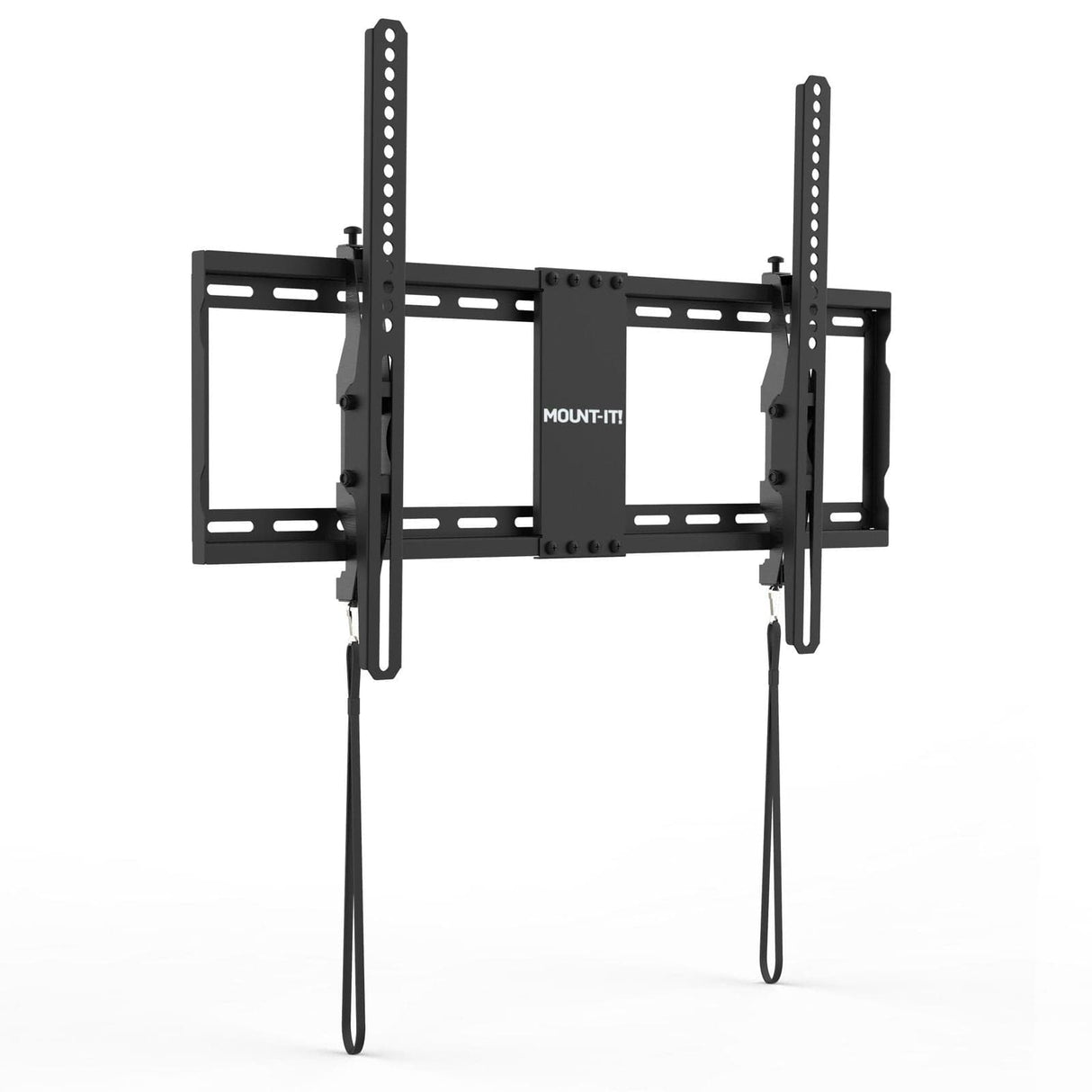

Tilting TV Wall Mount for 42" to 80" TVs
Tilting TV Mount
Low Profile · Adjustable Viewing Angle
15% OFF with code DAD26
?
Code not valid for B2B accounts and cannot be used with B2B pricing or POs or combined with other codes and is not valid on sale items. Quantities are limited and subject to change.A low-profile tilting TV wall mount for 42 to 80-inch flat screen TVs, sits flush to the wall and lets you angle the screen, rated (up to 110 lb with VESA 100×100 to 600×400 mm).

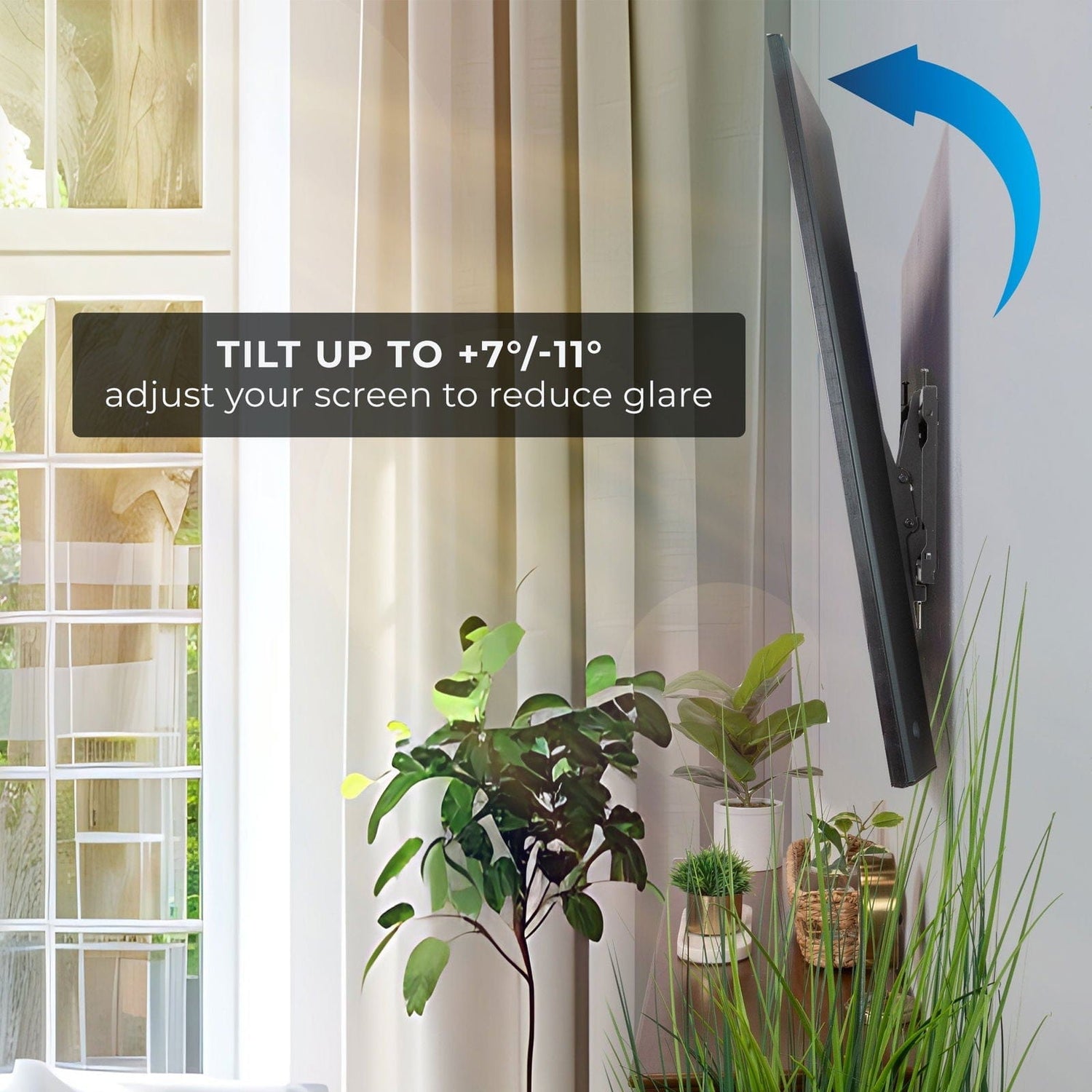

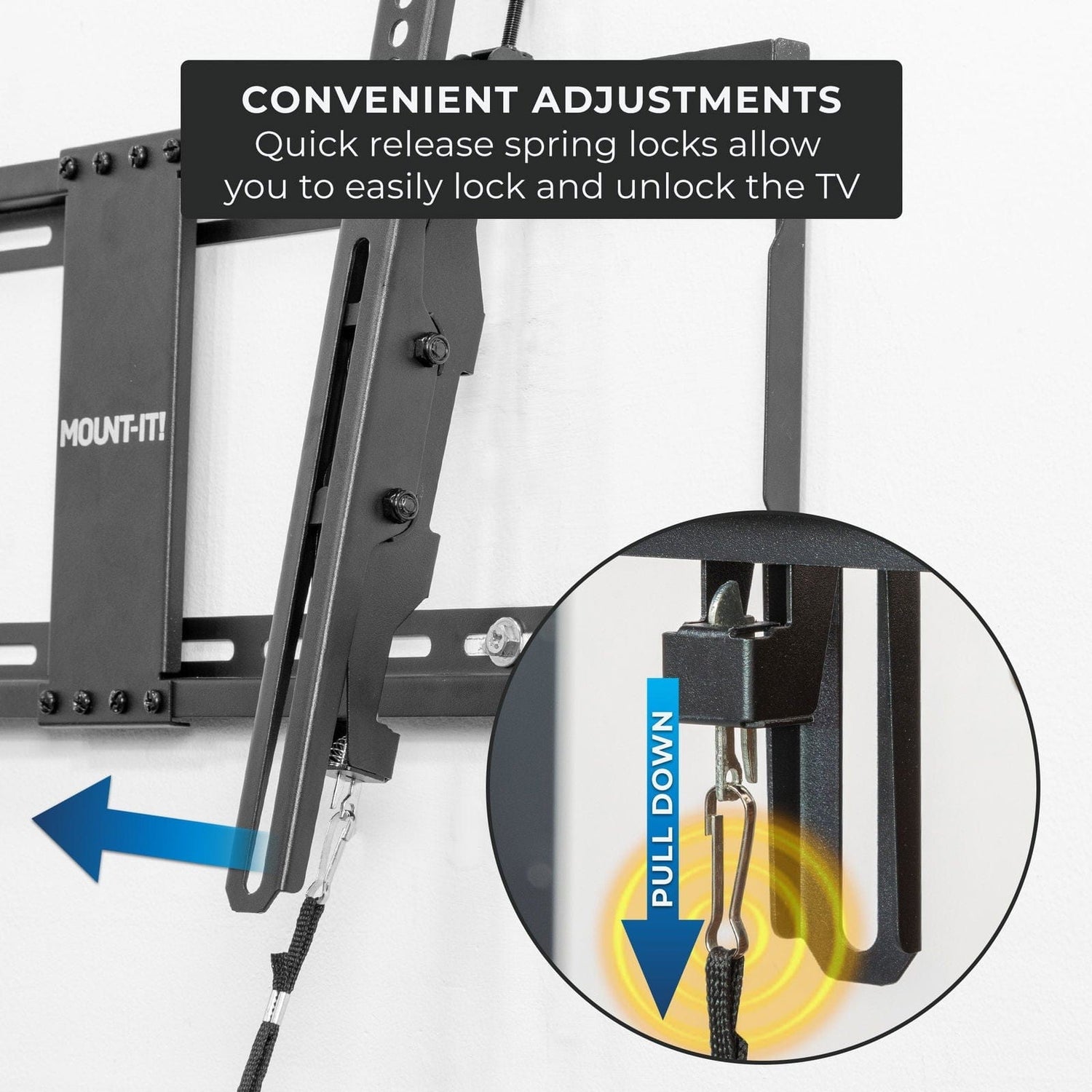

Tilt +7.0°/−11.0° to eliminate glare and get the right viewing angle from your seat.
Tilting TV Wall Mount
Features
Fits 42 to 80 inch flat screen TVs
Weight rated up to 110 lb
Adjustable tilt +7.0° up / −11.0° down - reduce glare, improve your view

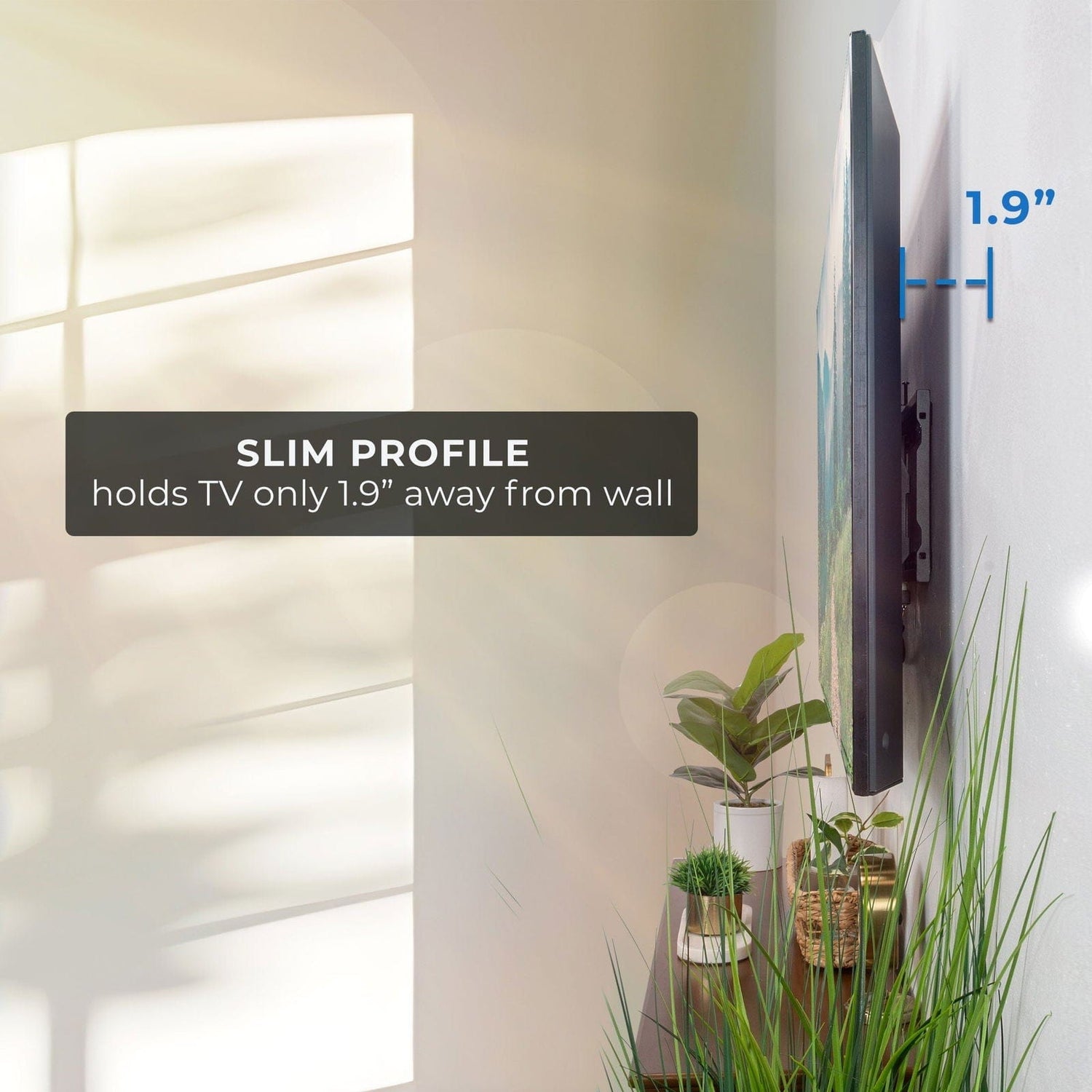

Low profile - mounts just 1.97 in from the wall

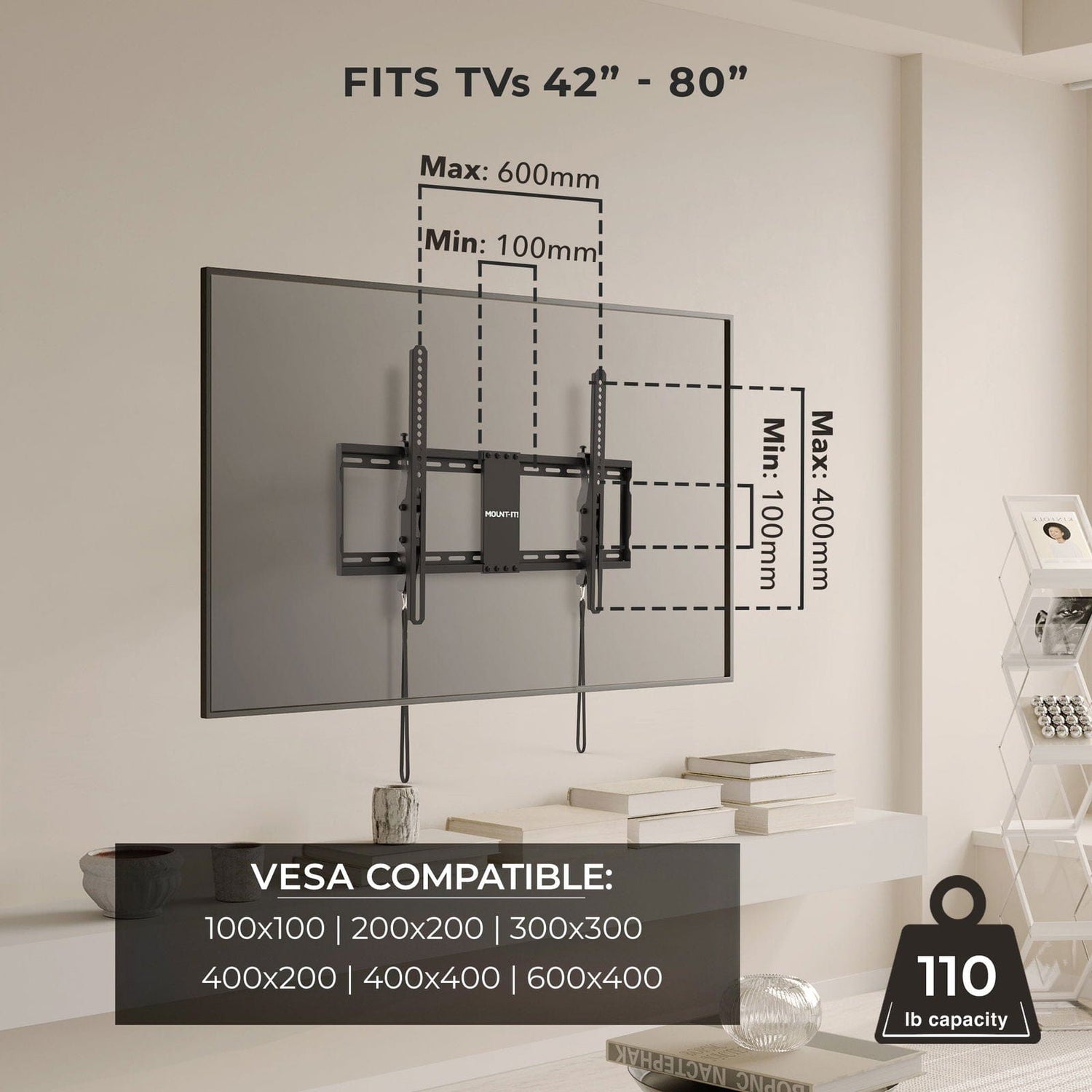

VESA 100×100 to 600×400 mm - fits most flat panel TV brands
Overview

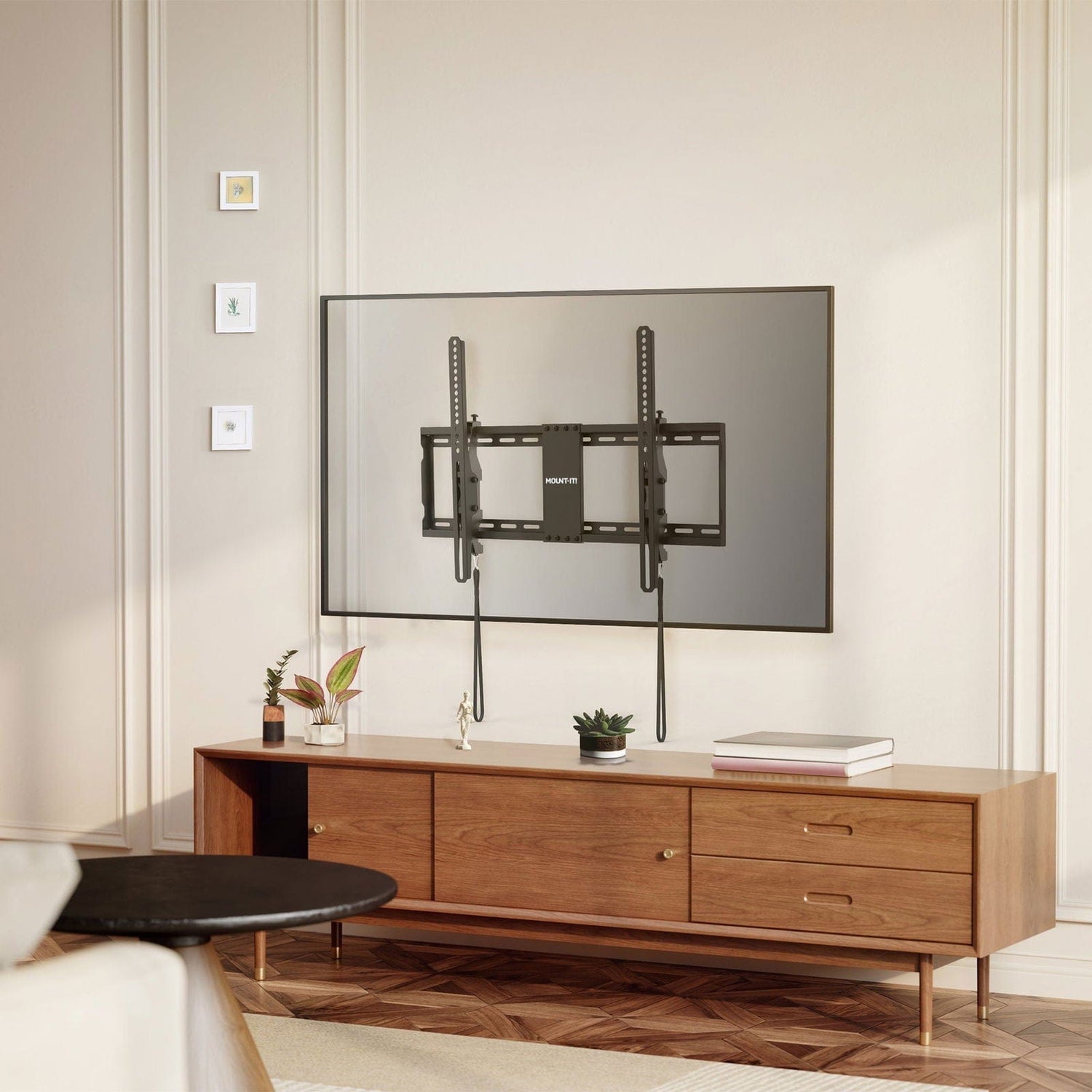

The Tilting TV Wall Mount is a low-profile tilting TV wall mount for 42 to 80-inch televisions that sits close to the wall for a clean, minimal installation while giving you the ability to angle the screen and eliminate glare. Rated for TVs up to 110 lb.
Adjustable tilt +7°/−11° to reduce reflections and find the right viewing angle from your seat. Profile depth 1.97 in. Sits close to the wall for a neat, minimal installation.
Compatible with VESA mounting patterns from 100×100 to 600×400 mm.
A practical choice for above-eye-level installs where glare is the primary problem to solve.
Ideally used for
Specifications
- SKU: MI-311
- Product type: Wall TV Mount
- Mount type: Tilting
- Product weight: 4.65 lb

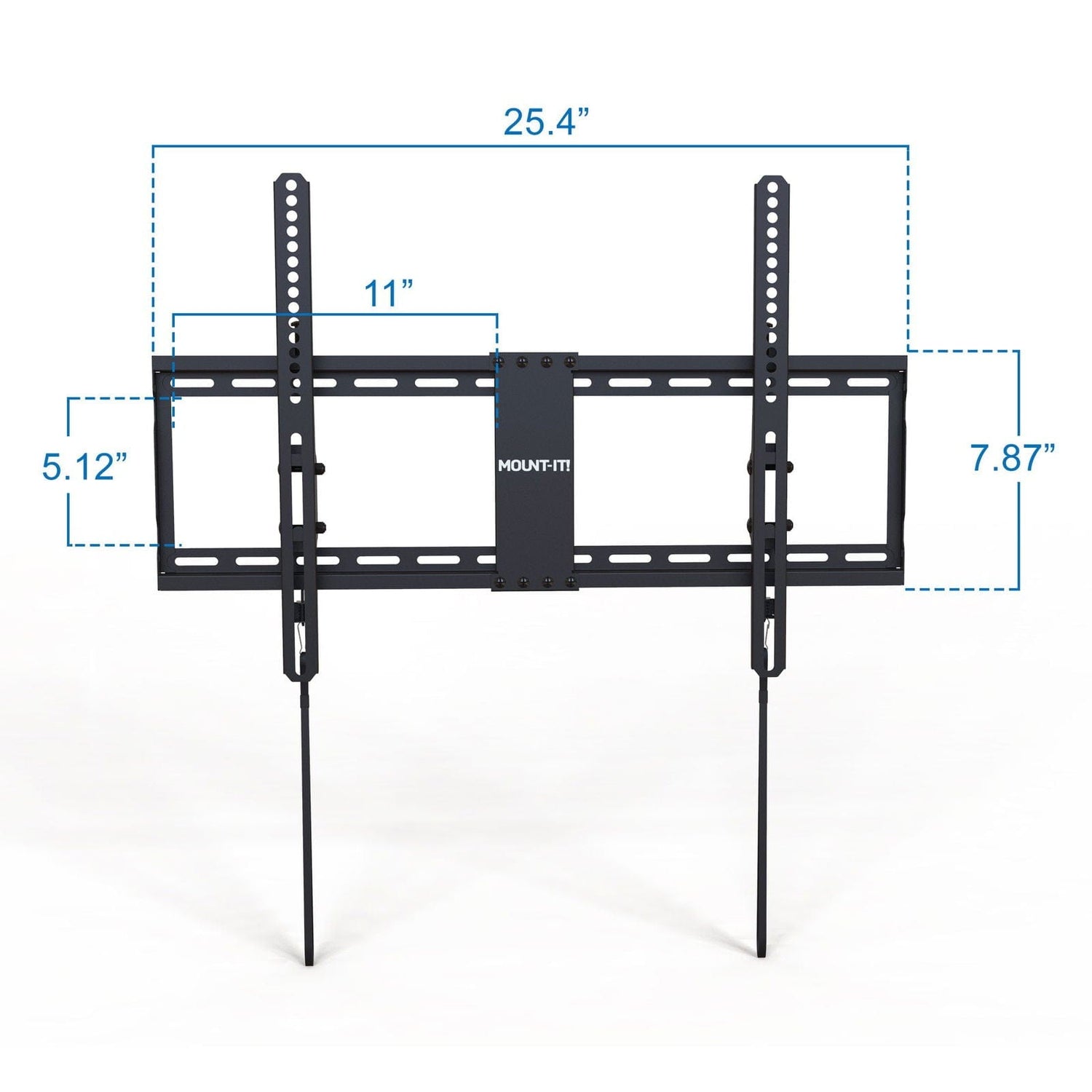

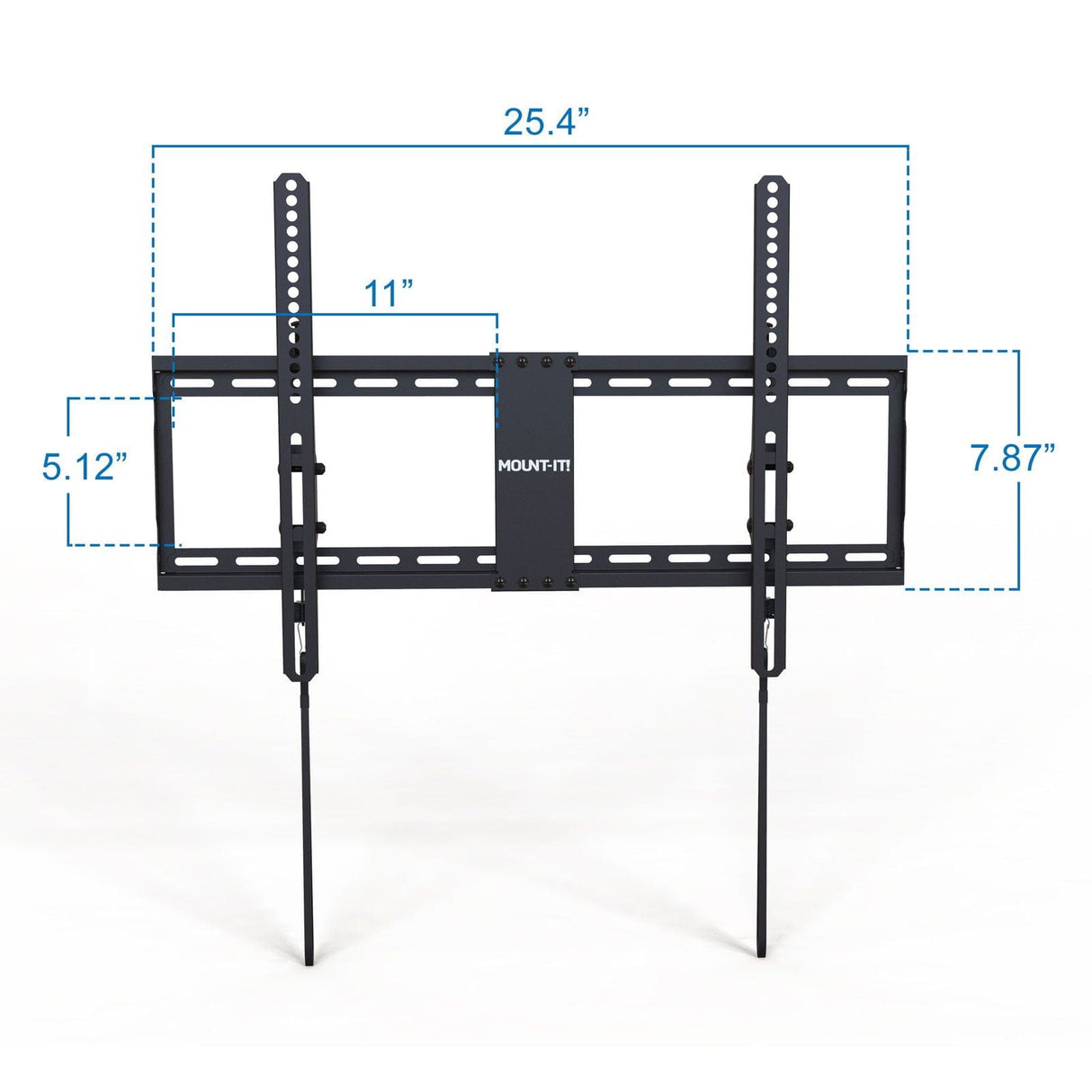

- Wall plate dimensions: 25.4×7.87 in
Holds screens
- Screen size range: 42 to 80 in
- VESA range: 100×100 to 600×400 mm
- Weight capacity: 110 lb
Movement
- Tilt:+7°and−11°
- Profile depth: 1.97 in

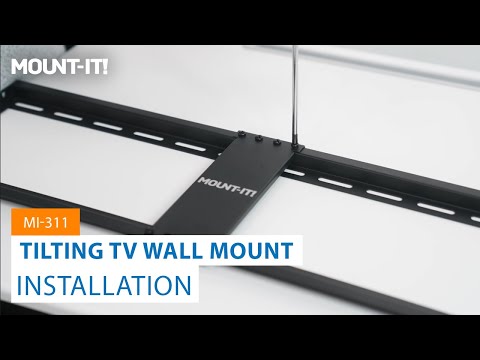

Installation
The Tilting TV Wall Mount is designed for quick and frustration free installation.
Easy installation is typically done in about 45 minutes.
Estimated install time: 45 minutes
Stud installation type: Dual stud
Stud spacing supported: 16, 24 inch stud spacing
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
